Generative Design: Retail Library

Use Generative Design to solve your site with your Retail Assemblies

To create your own Retail Assemblies take a look at this article:

Retail Library &  Editor Overview

Follow the steps below to run Generative Design with your Retail Assemblies:

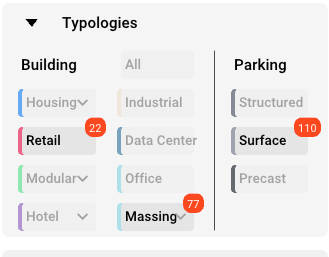

1. With a site created make sure the following typologies are enabled:

  •  Retail

  • Massing

  • Surface Parking


2. Select one of the premium Retail presets to be ran with Generative Design by clicking the sparkle at the end of the preset.

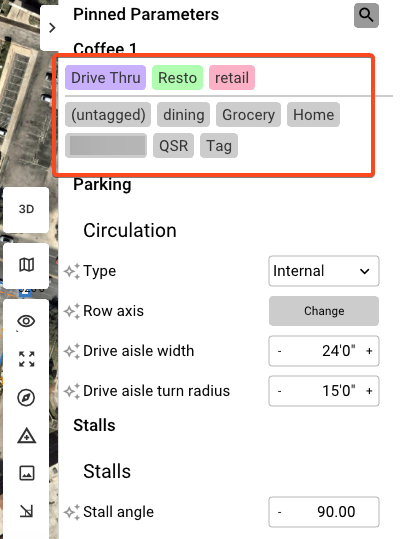

3. From the Pinned Parameters panel, enable/disable the assembly tags that correspond to your pre-built assemblies. The assemblies with those tags will now be included in your All Solves list. Adjust any additional parameters at this time in this panel as well.

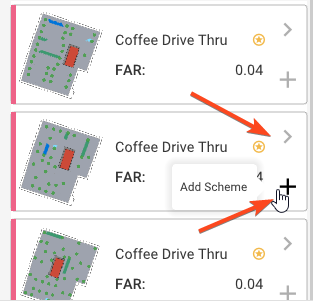

4. In the All Solves list, you can either apply a solve by clicking the "+" sign, or send a specific solve to a scheme by clicking the ">".
