By default, most of the industrial presets come with one standard office space already in the warehouse. The Urban Infill preset does not contain an office but one can be added manually.
The two methods below can be applied to a warehouse with or without an office depending on if an office space already exists.
Adding a New Office Space

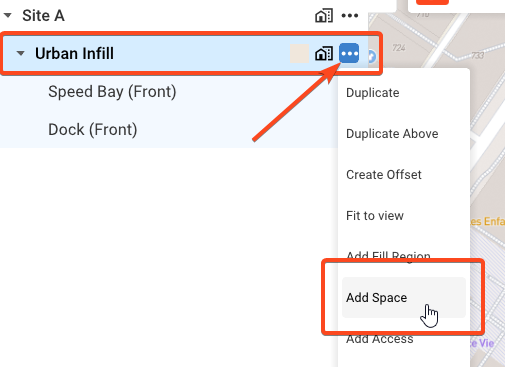

- Select the preset layer, click the three dots, and click Add Space

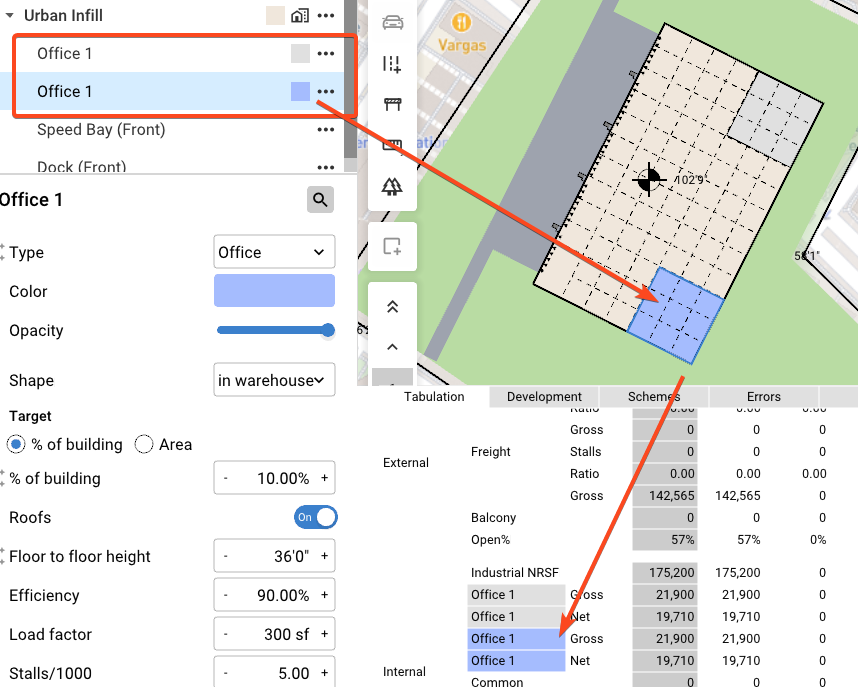

- Office 1 will appear nested below the preset layer. Select it to modify its parameter values (color, size, stall requirements, etc.)
Duplicating an Existing Office
If an office space already exists within a warehouse you can simply duplicate it:
- Click the three dots at the end of the office layer and select Duplicate
- Select the newly created office and make any necessary property adjustments.
Modifying Office Spaces
Moving an Office
To move an office withing a warehouse simply select it in the Nav-tree, click+hold in canvas, drag office to new location.
Offices in your Tabulation
Your office spaces appear in your expanded tabulation. If the offices in your building have the same name or color, they will appear as one line item. Simply change the color or name of either office to see them as two individual offices.
