Test a Vehicle Path

Note: A site must be created to draw a vehicle path.

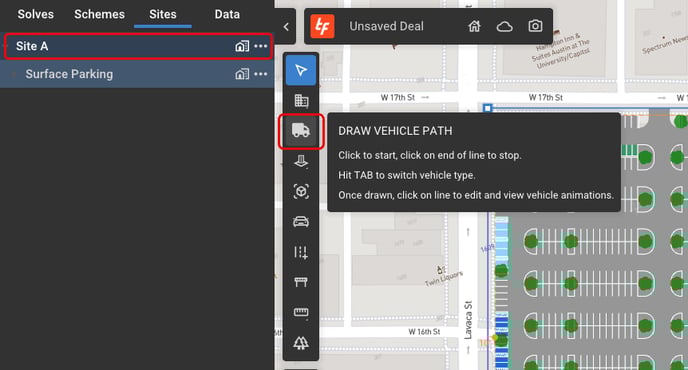

Select the Draw Vehicle Path tool from the Drawing Ribbon.

Then, click tab to filter through the vehicles available to select a vehicle type.

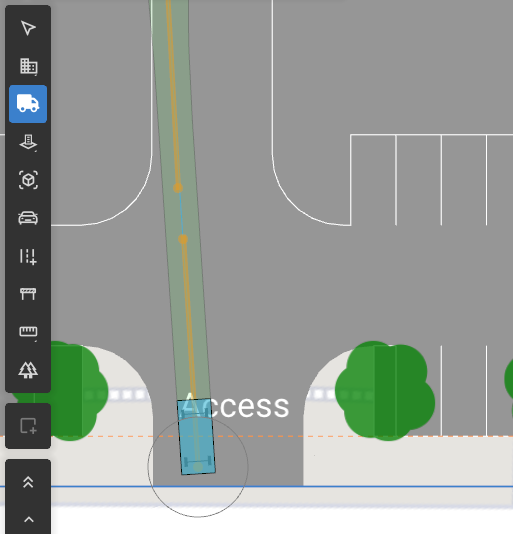

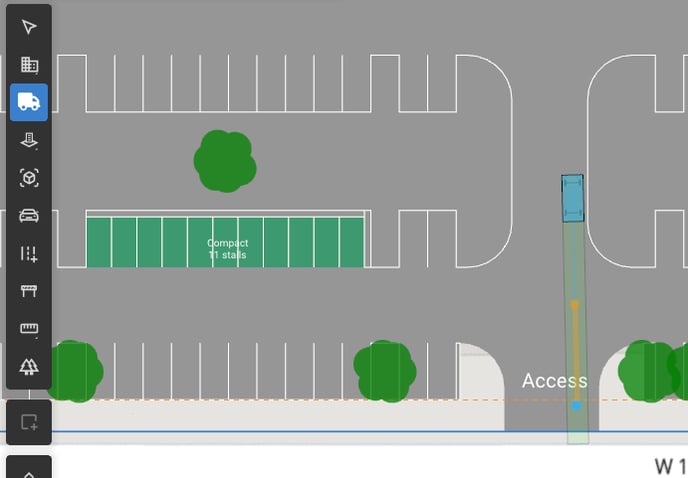

Start to define the vehicle path by left clicking and placing points until the path is complete.


Click on the final point which will be highlighted with a circle.

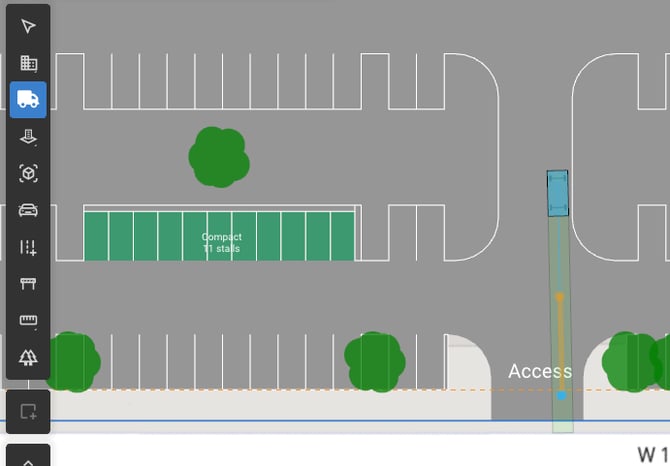

Points can be adjusted after the path is defined.

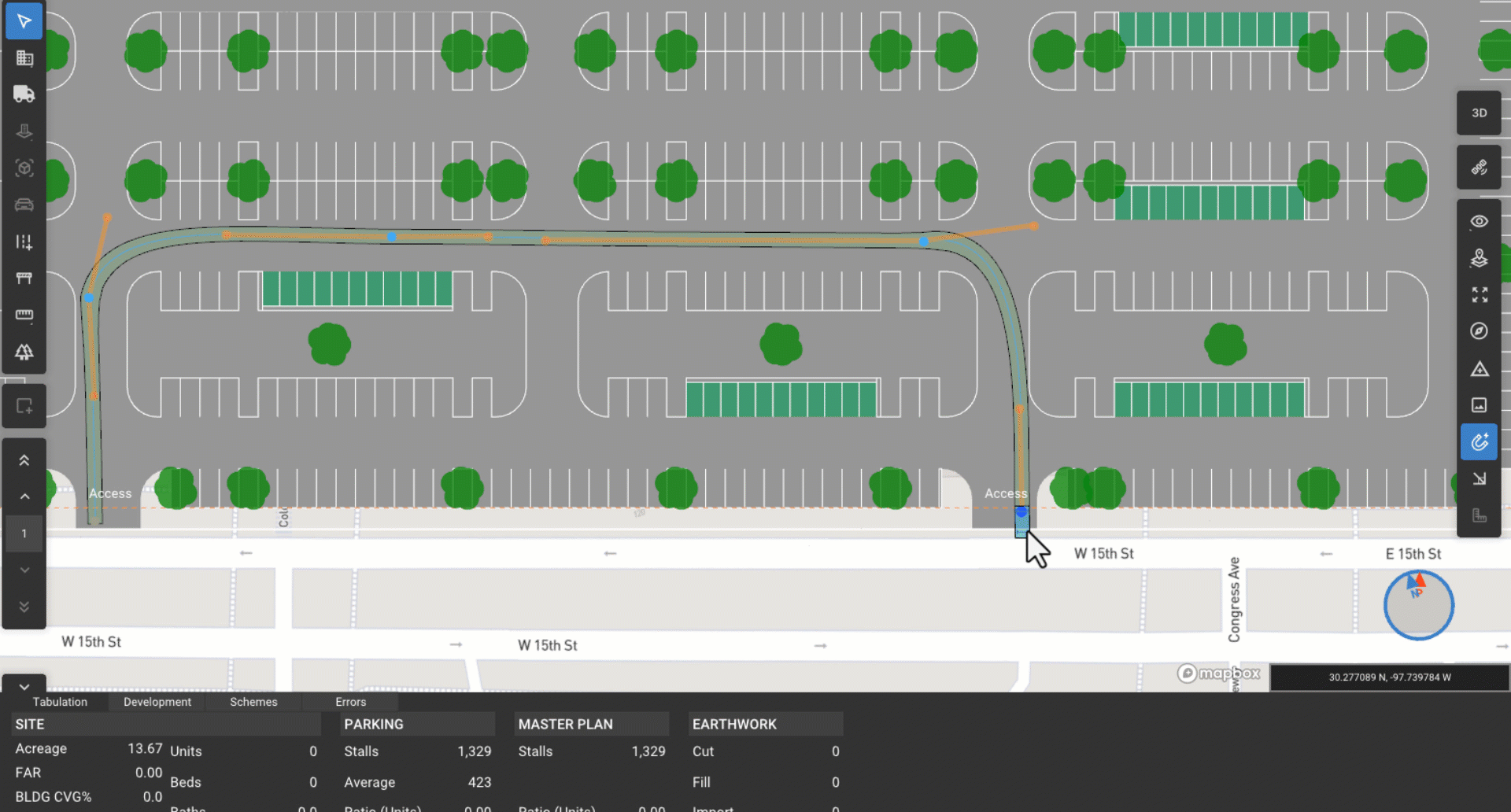

Drive path
