Multi-size parking stalls

Using the stalls panel, you can define multi-sized parking stalls to support ADA and compact stalls.

Once you have a solution, you can adjust the ratio, display color, and size of your parking stalls to accurately reflect and calculate the number of parking stalls.

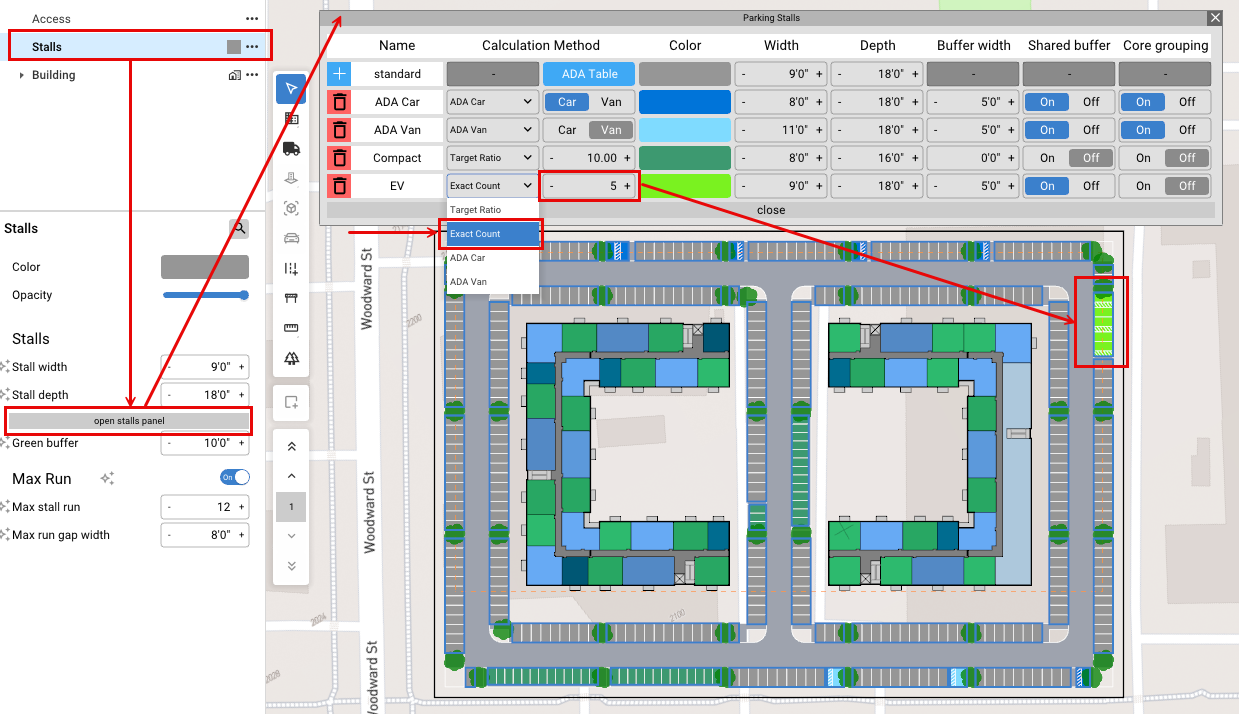

To access the stalls panel, go to your Site > Garage > Stalls > open stalls panel.

The number and type of stalls will be labeled on the stalls themselves, and the breakdown of stall types is listed in expanded section of the tabulation section of the data output panel.

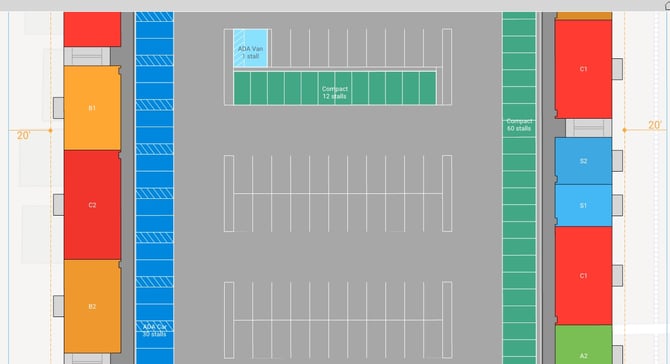

stall count

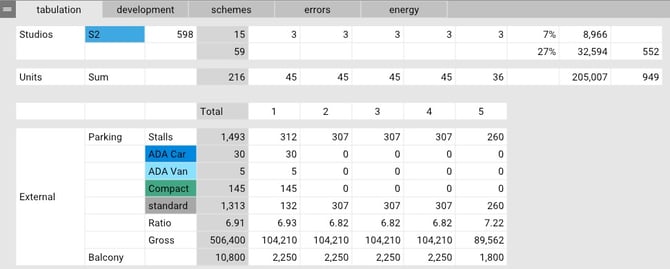

parking stall breakdown

Custom Stall Types

To add custom stall types such as ADA, Compact, EV, or Trailer, hit the blue plus in the stalls panel, and enter the dimensions you need.

stalls panel
For more about Parking, please review this page.
