The 2D/3D Button

This area shows the output of the site.

3d view


Switching from 2D to 3D views

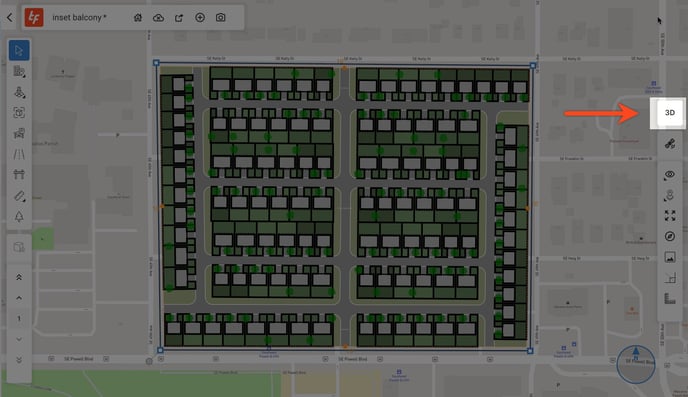

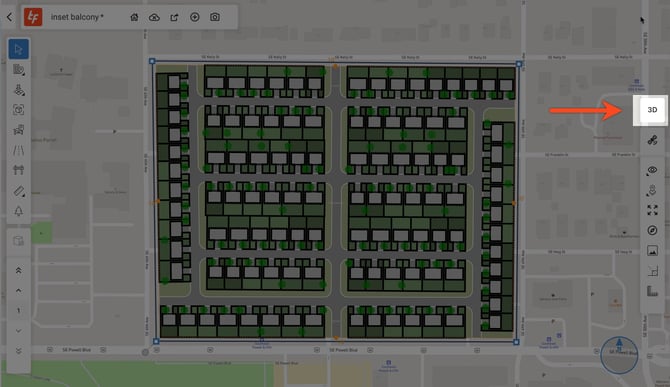

When in a 2D view, click the 3D button in the viewer window. Likewise when in a 3D view, click the 2D button. (hint: it's the same button)

3d button


Shadows

Enabling Shadows

Left click the sun button, then click the shadows button.

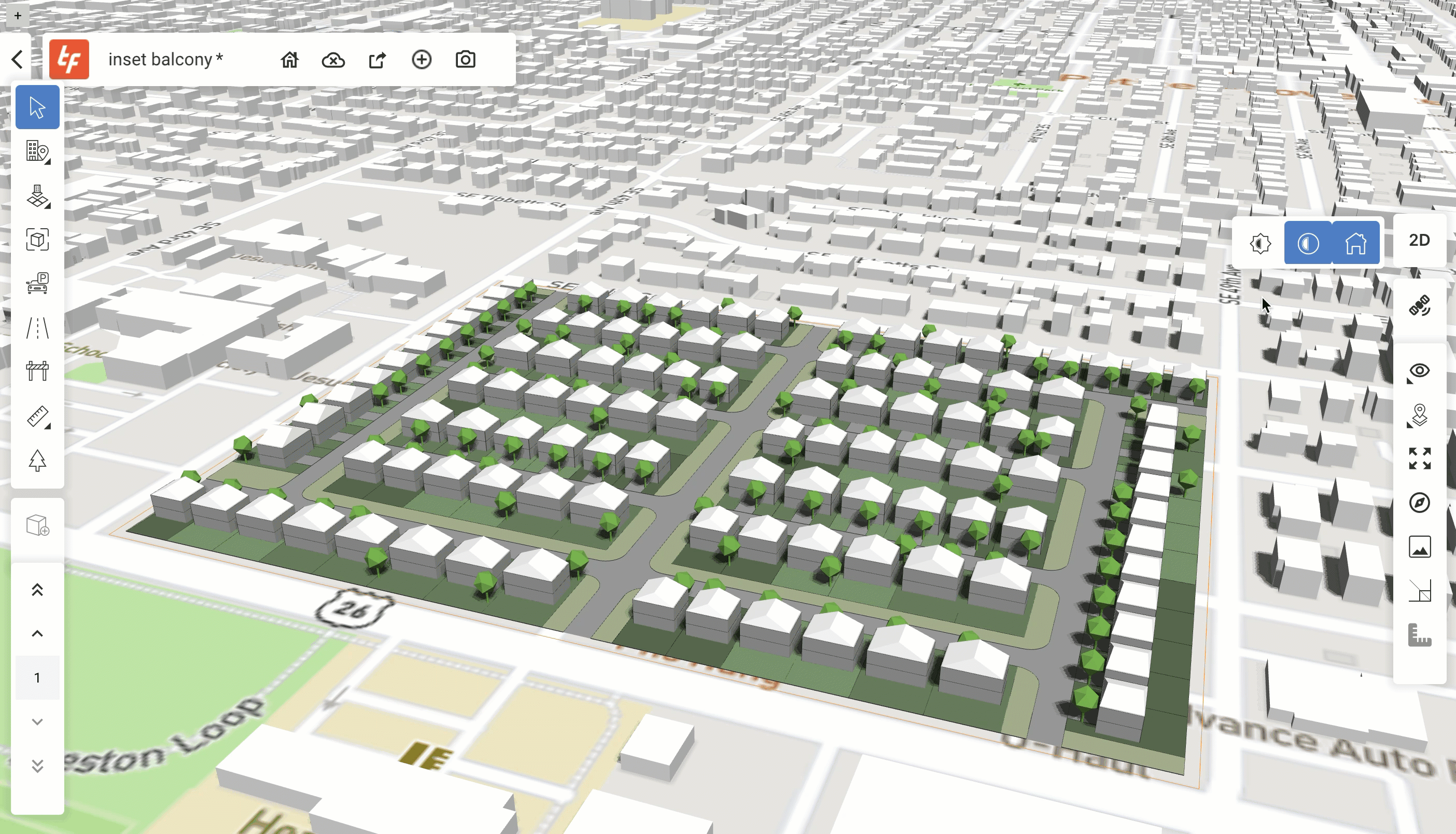

shadows


Shadow Studies

Adjust the date and time to see the shadows.


Heatmap Studies

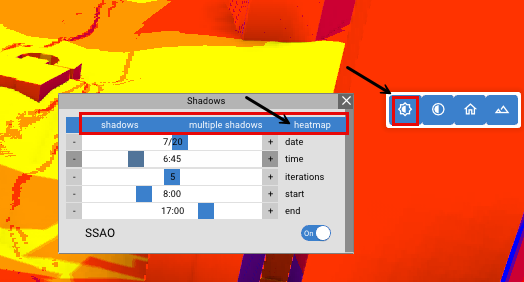

The heatmap for a daylight study can also be turned on under the Shadows settings.

To turn on the heatmap, set the desired time and ensure shadows, multiple shadows, and heatmap are all selected and highlighted blue.


Enabling context buildings

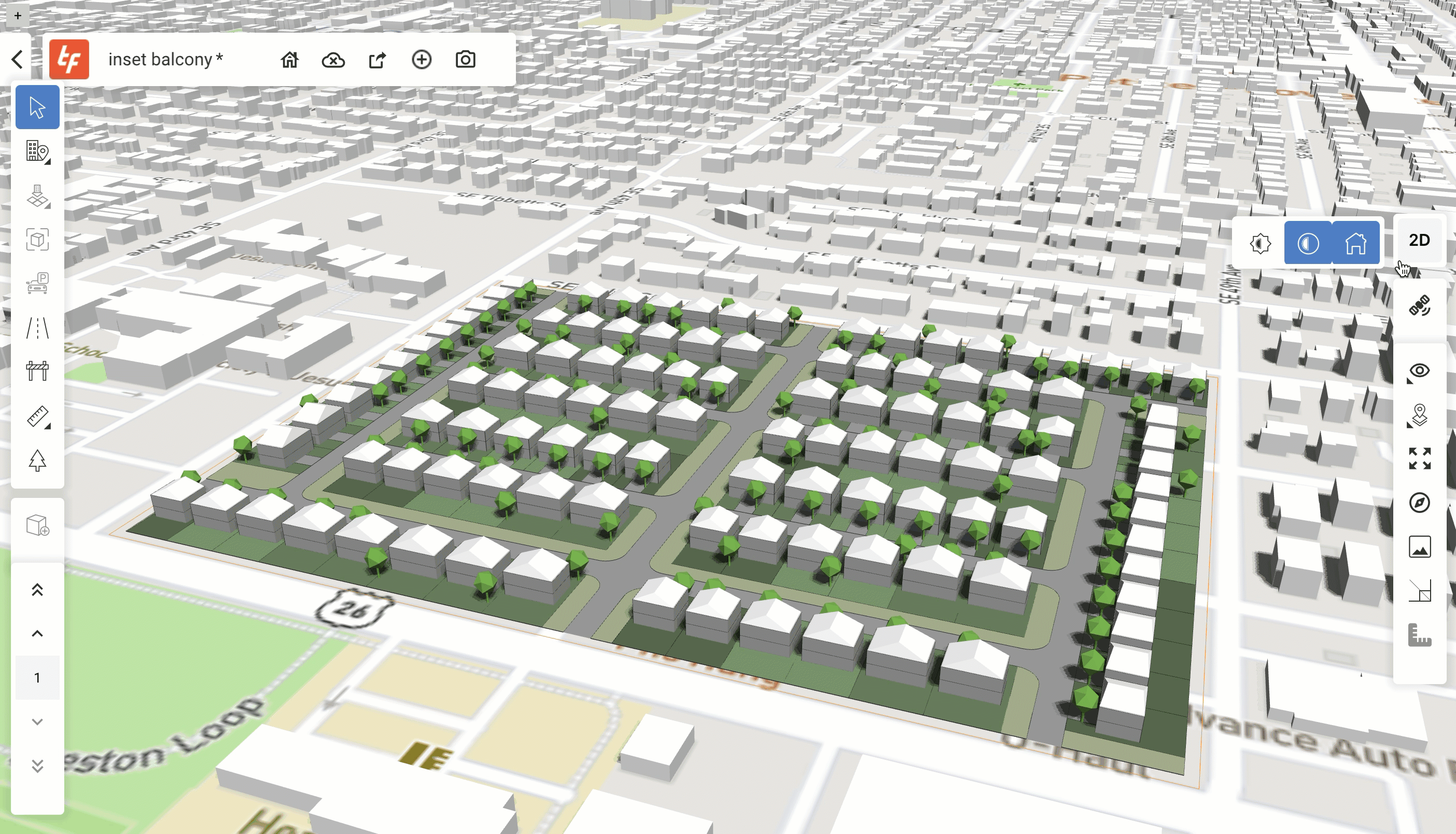

Left click the building button.

3 context


Toggling Colors

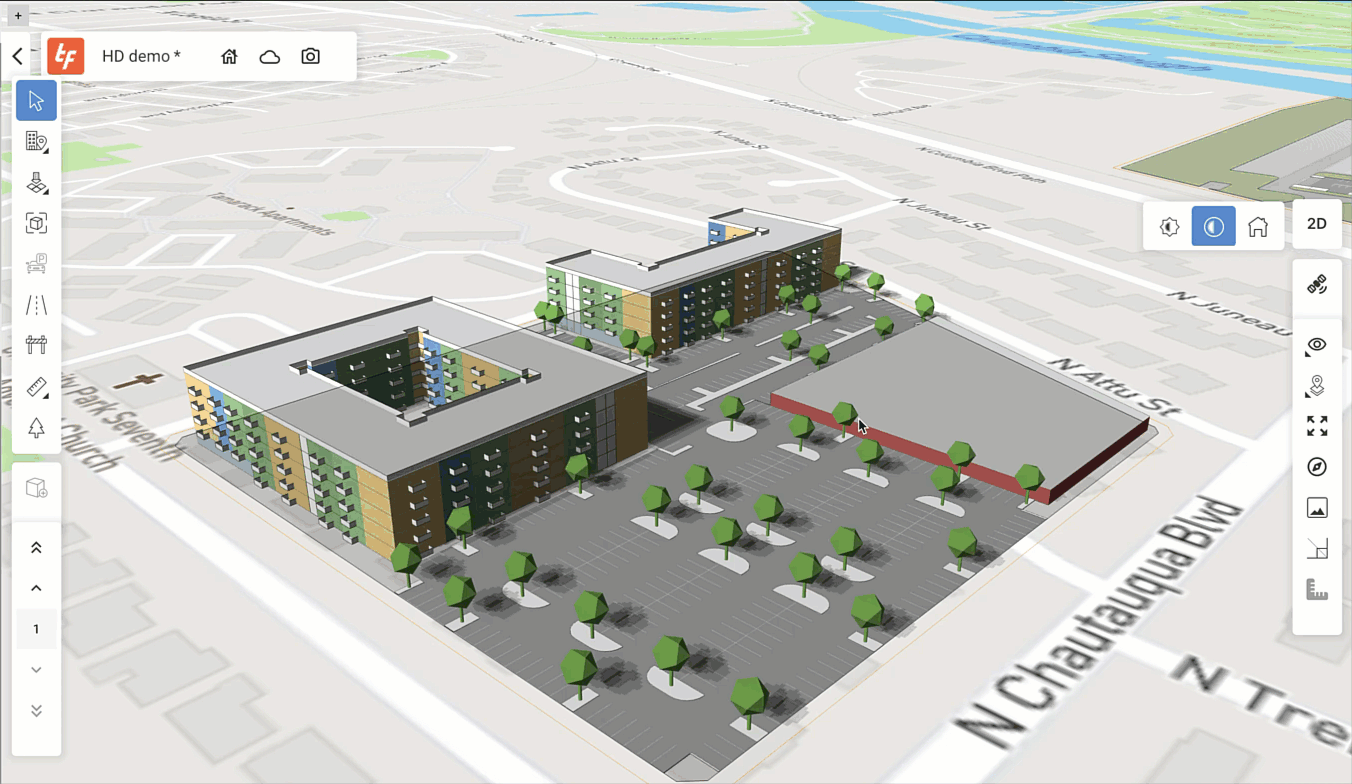

The middle button on the bar will toggle building colors on or off.

colors
