      High-Density Units at Height

      Adjust the unit types per level or level range with the High-Density units at height functionality.

      KB-HD-Units by Level

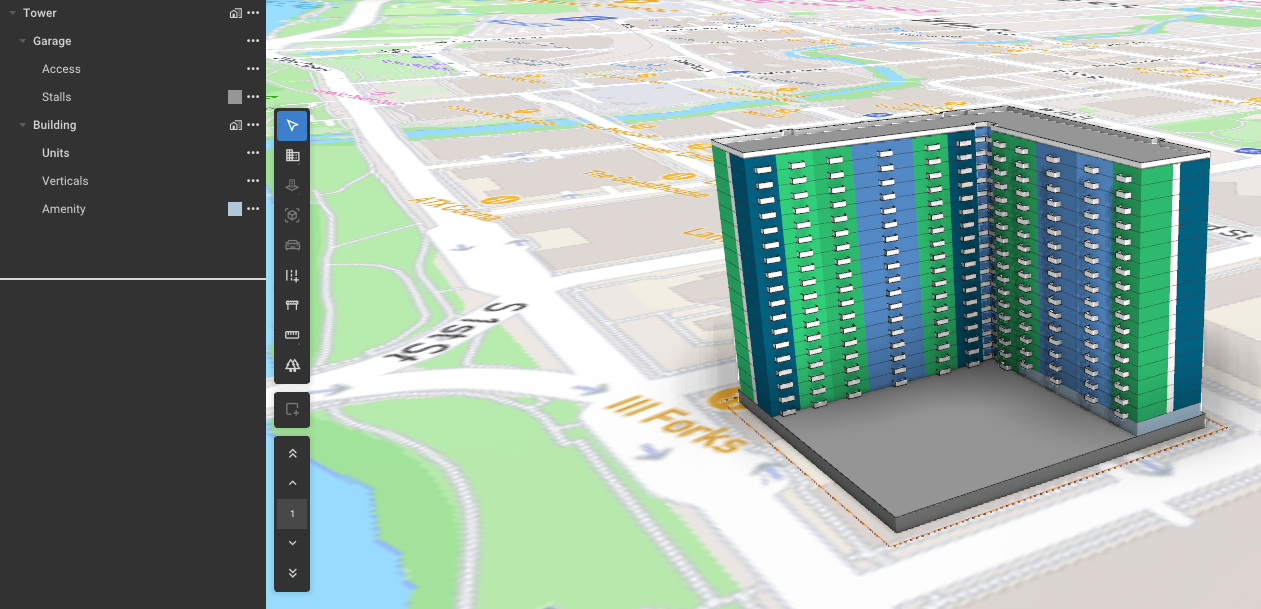

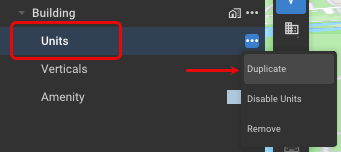

      Apply a High-Density preset to a site or region. Select the Units layer in the Nav Tree. Then, select the ellipsis and duplicate the unit layer.

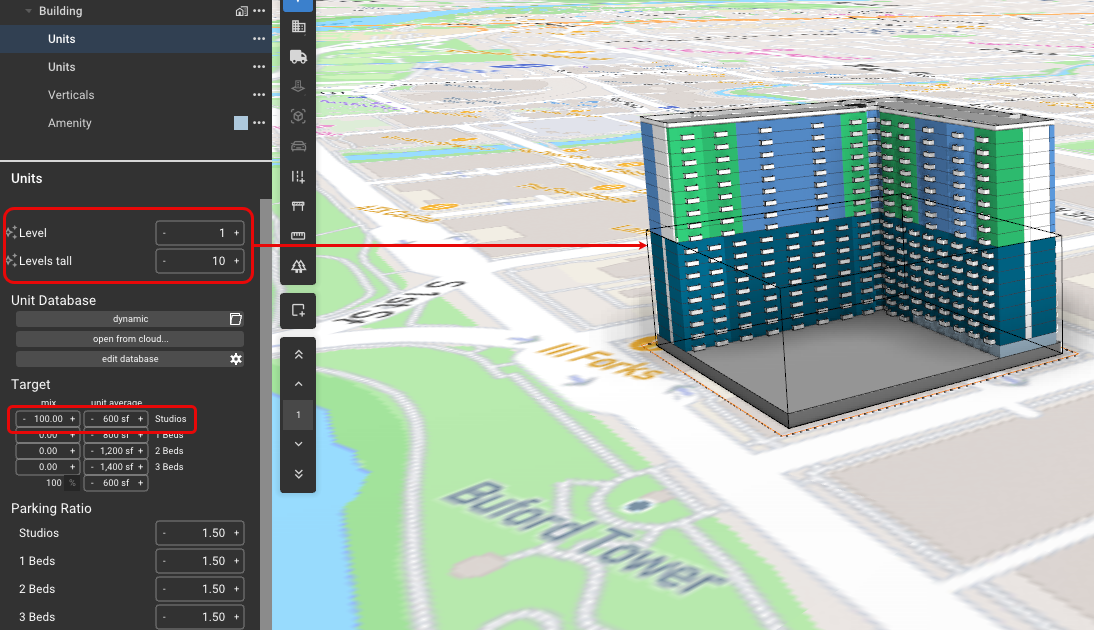

      The original Unit layer will now be able to be defined by the starting level and levels tall. Adjust the Levels tall in the Property Panel. Then, adjust the unit mix and/or Unit Database for the specific Units layer.

      The unit mix and unit database can be unique for each Units layer in the Nav Tree.
