# Verticals

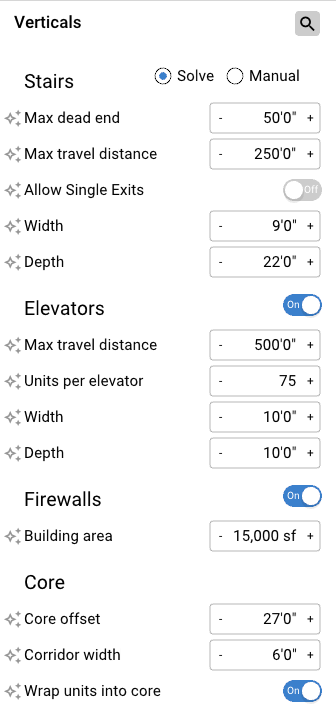

## The verticals panel allows users to enable stairs, lifts and firewalls.

![](https://support.testfit.io/hs-fs/hubfs/image-png-Oct-21-2025-01-46-39-9919-PM.png?width=336&height=716&name=image-png-Oct-21-2025-01-46-39-9919-PM.png)

---

### **Definitions**

- **Stairs** - Allow TestFit to place stairs automatically, or set to manual to place them yourself
    - **Stair max dead end** - sets the maximum dead end distance for stairs (minimum currently set to 20’)
    - **Stair max travel distance** - sets the maximum travel distance between stairs
    - **Stair offset** - defines an additional offset from the common area
    - **Stair width** - set the width of the stairs
    - **Stair depth** - sets the depth of the stair
- **Firewalls** - enable or disable firewalls
    - **Building area** - sets the maximum building area before a firewall is added

- **Elevators** - enable or disable elevators
    - **Lift max travel distance** - sets the maximum travel distance between lifts
    - **Lift width** - sets the width of the lift
    - **Lift depth** - sets the depth of the lift
    - **Lift bank depth** - sets the depth of the lift bank
    - **Core Depth** - sets the depth of the core
    - **Units per lift** - maximum number of units that can be serviced by a single lift
- **Core** - A group of stairs and/or elevators, or a manually placed vertical

---

### **Moving verticals**

Left click the stair or lift and drag it to into the new location.

<iframe data-hsv-src="https://play.hubspotvideo.com/v/3486113/id/90868704295" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="90868704295" data-hsv-style="" data-hsv-width="688" data-hsv-height="387" data-hsv-autoplay="false" data-hsv-loop="false" data-hsv-muted="false" data-hsv-hidden-controls="false" data-hsv-full-width="false"></iframe>

NOTE: Moving a vertical or manually placing a vertical will make it a core element

---

### Adding new verticals

You can add new verticals by right+clicking the location and selecting Stair or Elevator.

<iframe data-hsv-src="https://play.hubspotvideo.com/v/3486113/id/90868704544" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="90868704544" data-hsv-style="" data-hsv-width="688" data-hsv-height="387" data-hsv-autoplay="false" data-hsv-loop="false" data-hsv-muted="false" data-hsv-hidden-controls="false" data-hsv-full-width="false"></iframe>
