How do I Align Parking to a Building? Anchored Parking

Anchor your Parking to a Mass Based Object

To anchor your drive aisles to a specific Retail building, follow these steps:

  1. Click the three dots at the end of the Retail space (or right click the object in canvas)
  2. Select the Add Drive Anchor option

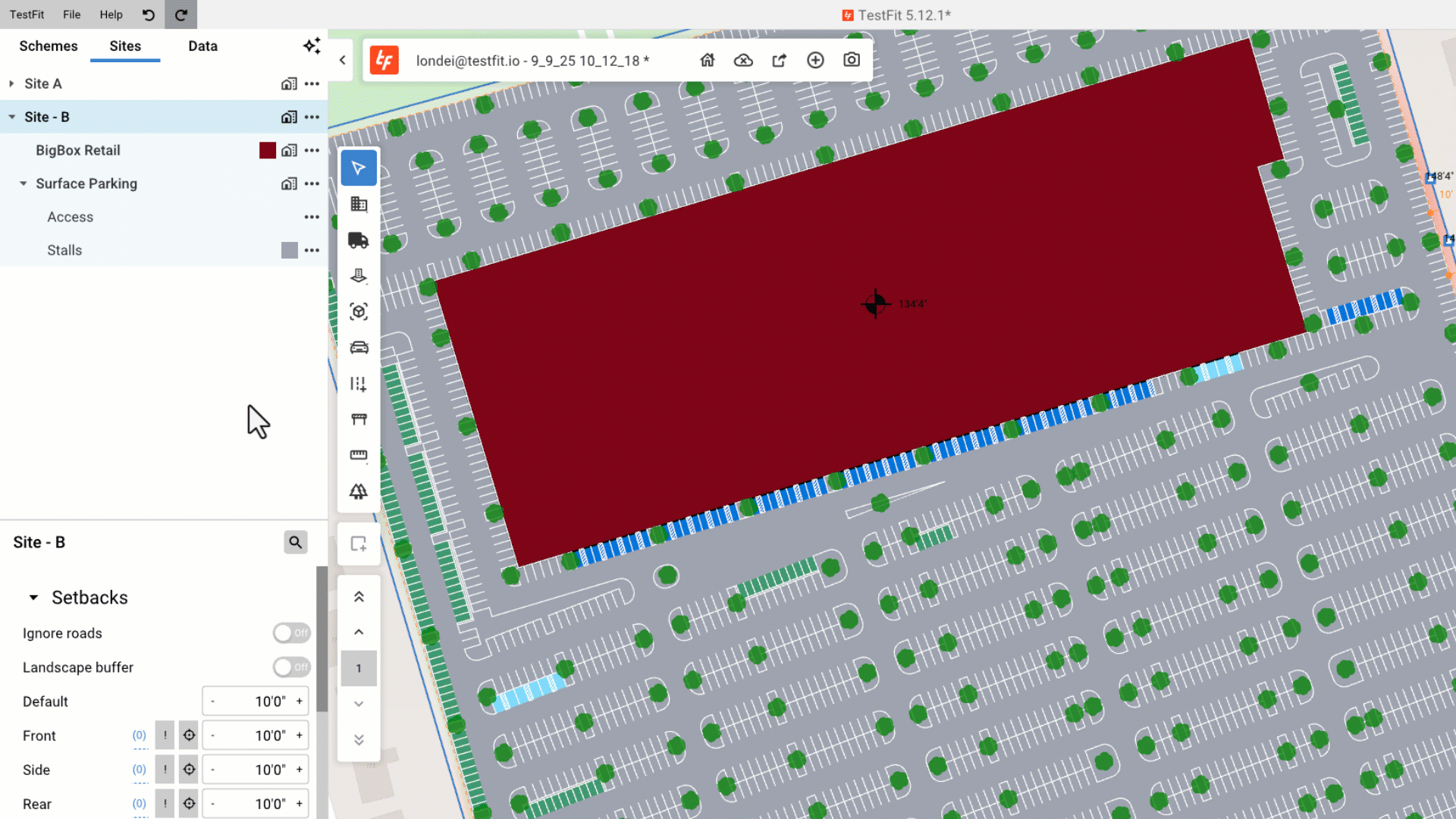

  3. A transparent bar will appear within the building. This is the edge your parking will align with. Click + hold and drag the bar to the appropriate building face as seen below.

DriveAnchor

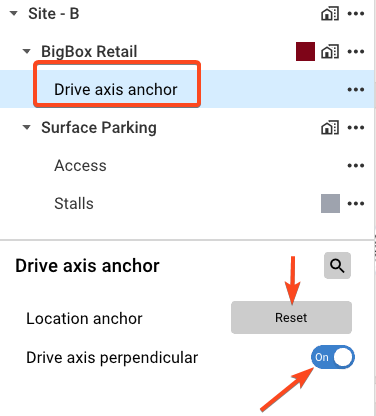

You can toggle between having the drive aisle be perpendicular to the building in the properties of the Drive Axis Anchor layer. You can also reset the anchors location

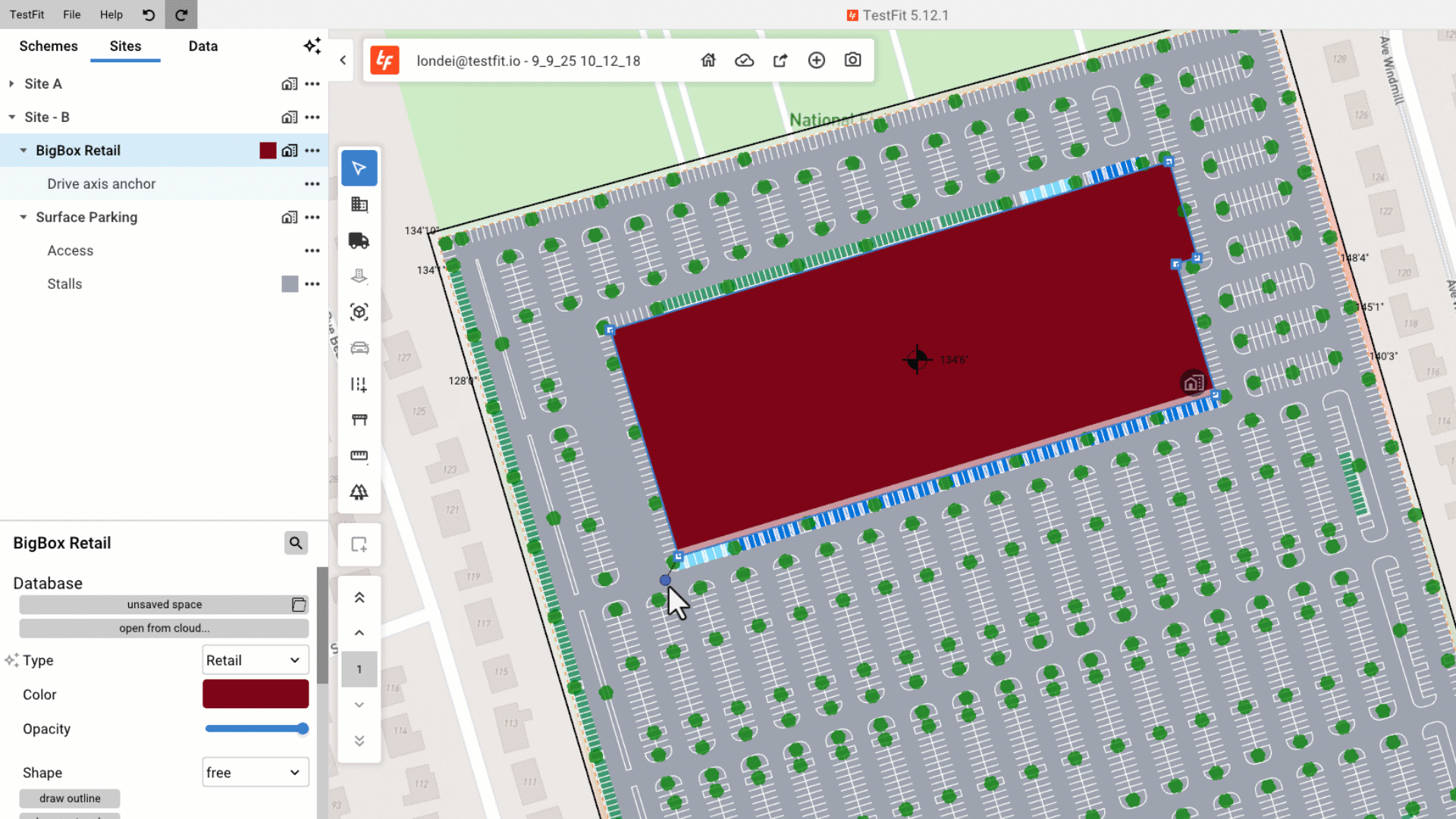

When rotating or adjust the building, your parking aisles will remain aligned.

anchor2
