Importing TestFit into Revit with add-in

Prior to importing a TestFit deal into Revit you'll need to export a .tfrvt file by clicking File > Export and selecting the .tfrvt option

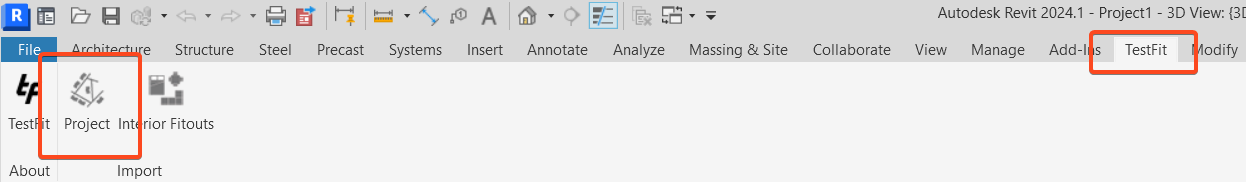

1. Open Revit. Click TestFit in the ribbon, then click on Project.

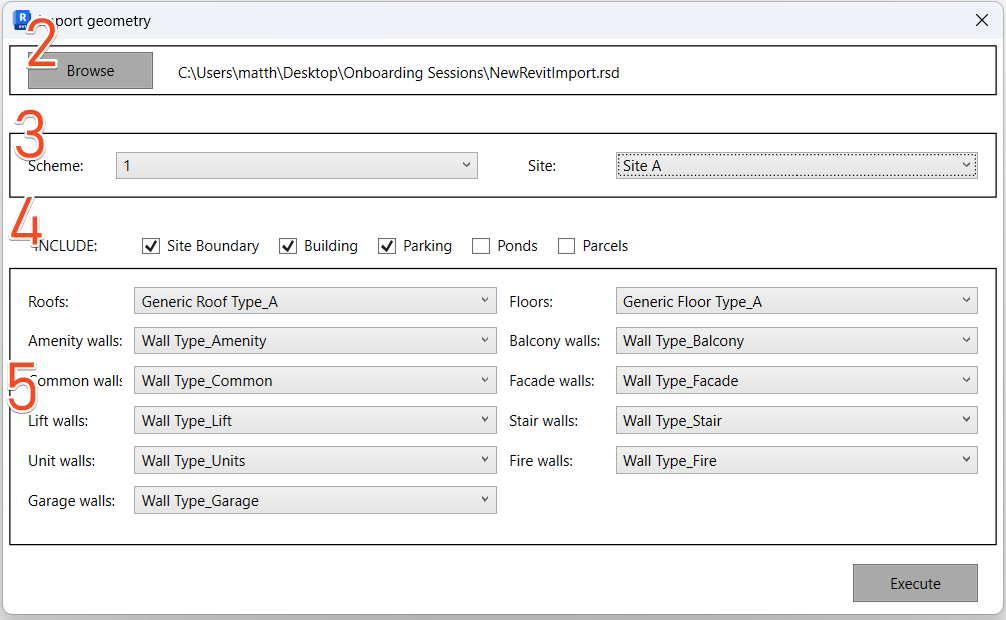

2. Click Browse and locate your TestFit .tfrvt or .rsd file.

3. From the Scheme and Site dropdowns, select your desired options.

4. Click what you want included with the import (Site Boundary/Building/Parking/Pond/Parcels).

5. Map your Revit system families to the TestFit elements.

Once everything has been set, click Execute and your building will start to load into Revit. Read our Interior Fitout knowledge base article to add even more detail to your Revit model.
