Site Exit

Create entrances and exits to your site

The site exit tool allows you to create entrances and exits to your site, which will then adjust the unit and drive layout of your site.

site exitYou can identify the site exit(s) by the circles in the drive aisle.

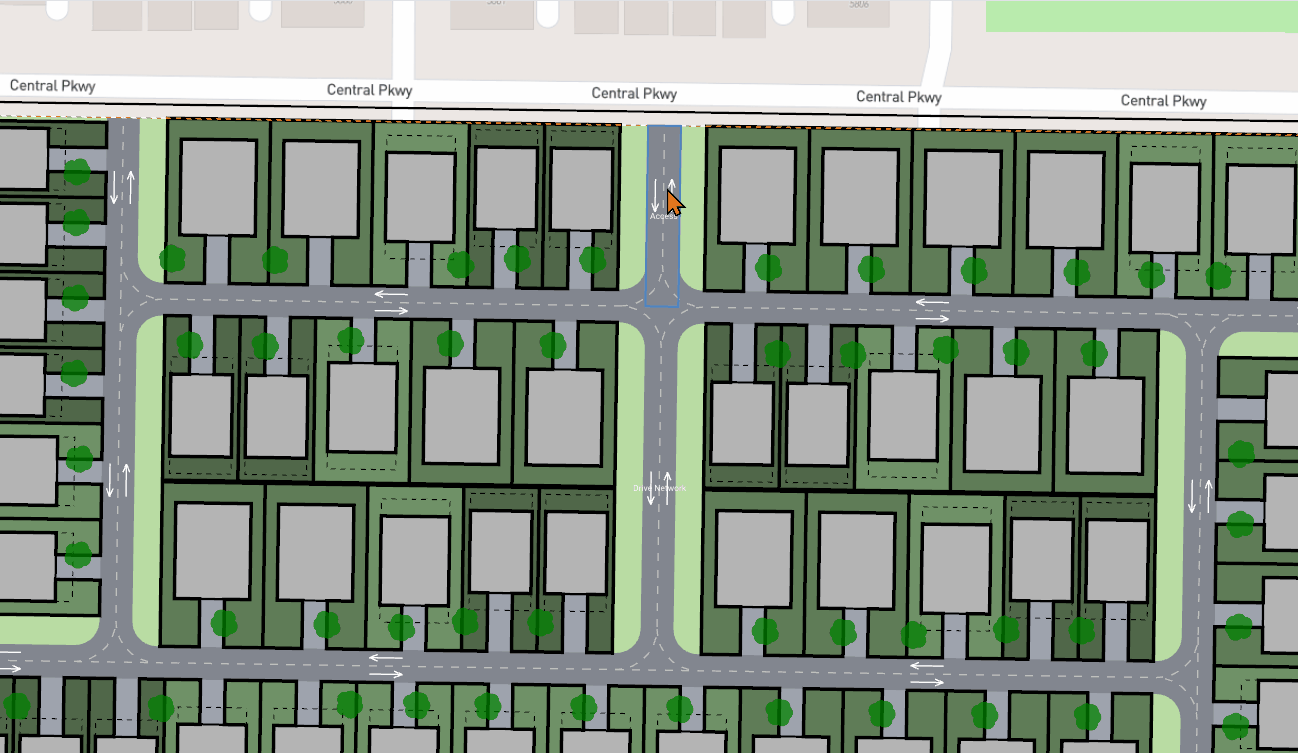

Moving a site exit

To move a site exit, left click on it, and drag to the desired location.

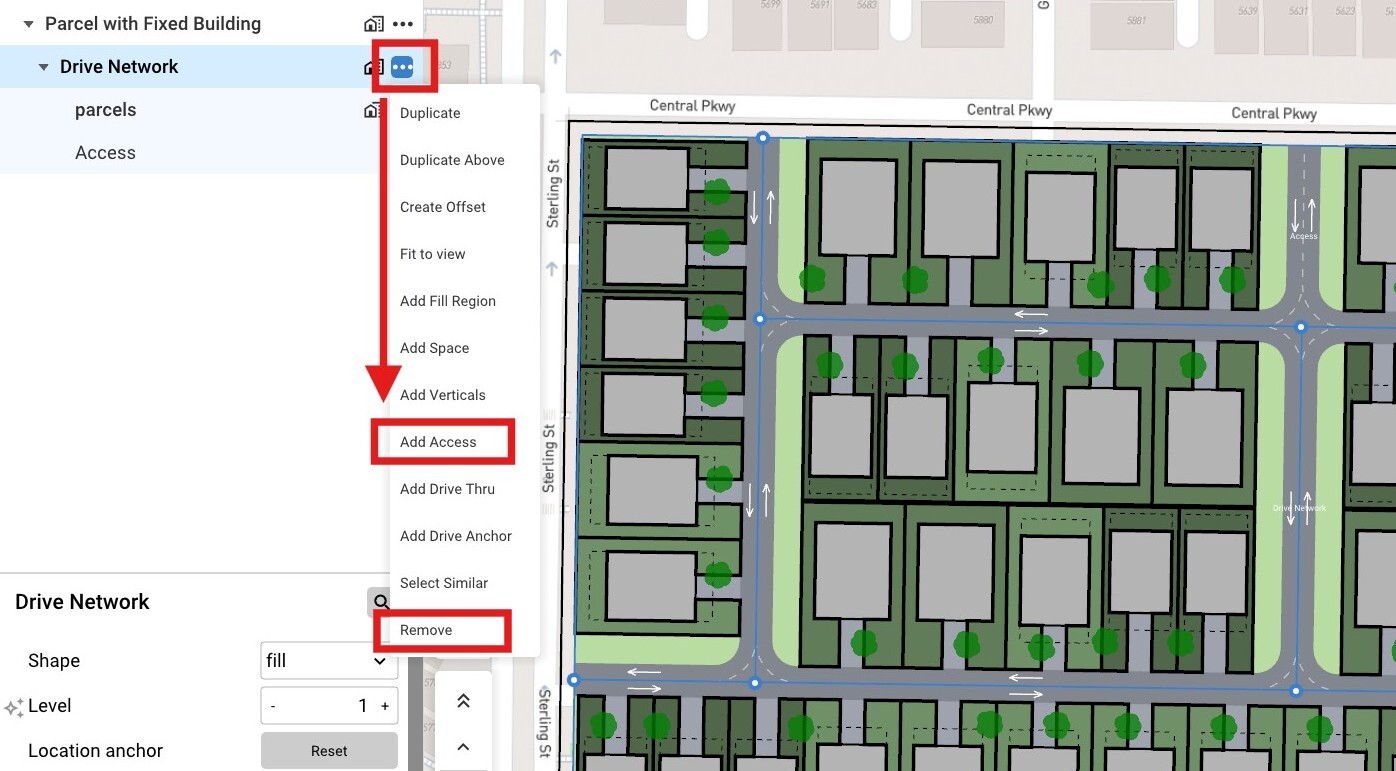

Adding a site exit

Click the + and select "exit".

add site exit

Removing a site exit

Click on the site exit you want to delete, then hit the trash can in the Navigation Tree.

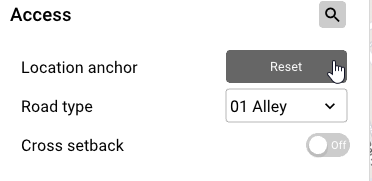

Resetting the location

To reset the location of the site exit to the original location, select the site exit in the Navigation Tree and select reset in the Input Panel.

reset location
