      Low Density Unit Editor

      The unit editor is used to create and customize buildings.

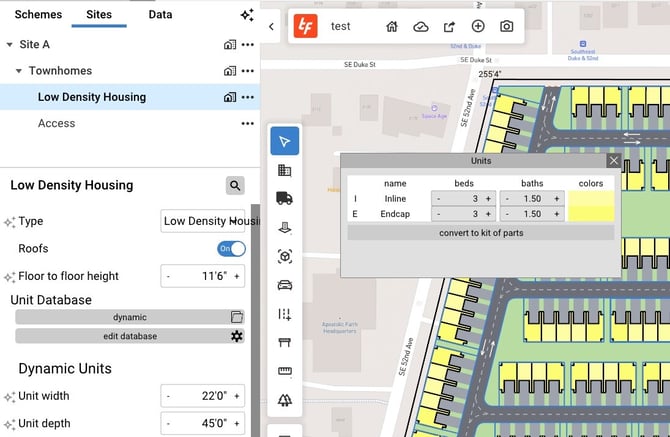

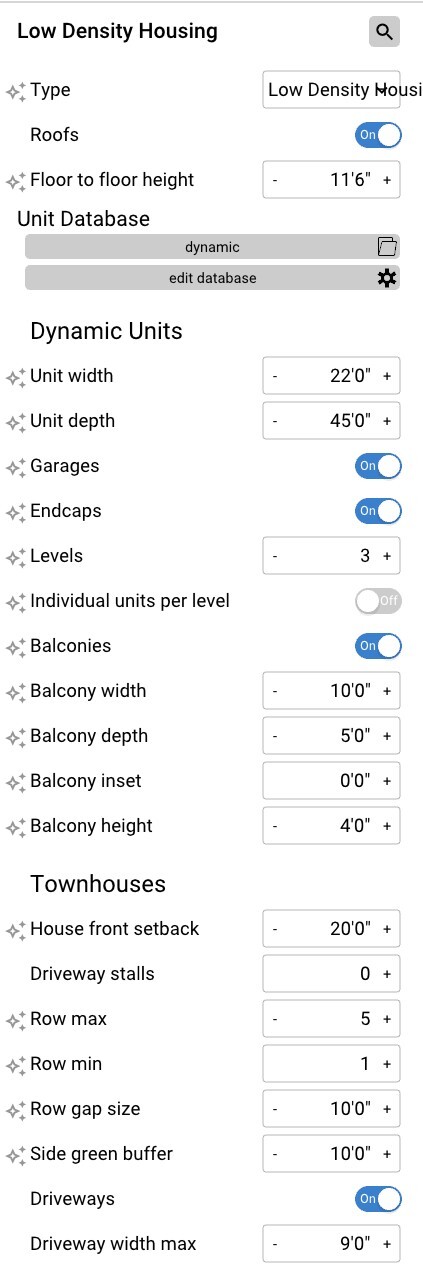

      To get to the unit editor, go to low density housing > edit units > convert to kit of parts

      low desity unit editor

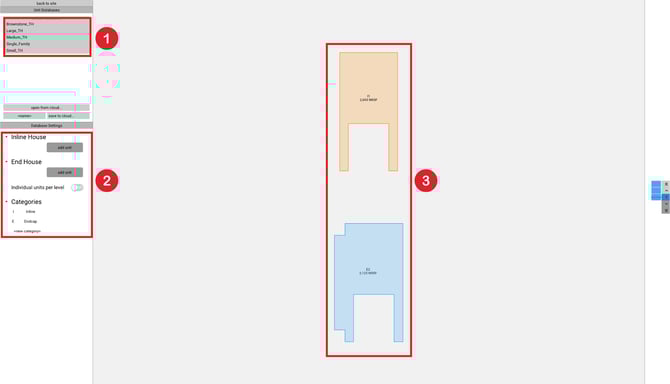

      Once you get to the unit editor, you'll see:

      1. The list of databases
      2. The list unit types in the project
      3. The unit layouts in the project

      current database

      Clicking on one of the units will bring you into the building editor.

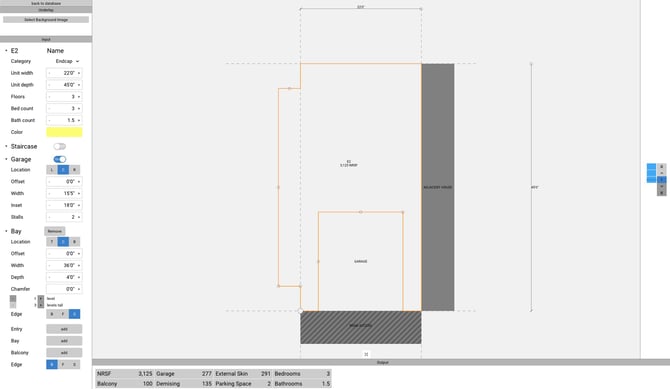

      Building Editor

      building editorThe building editor allows you to modify the following:

      • Name
      • Width
      • Depth
      • Floors
      • Bed Count
      • Bath Count
      • Display Color
      • Staircase
      • Garage
      • Entry
      • Bay
      • Define the joined edge (back or side)
      • Add additional entries, bays, or balconies

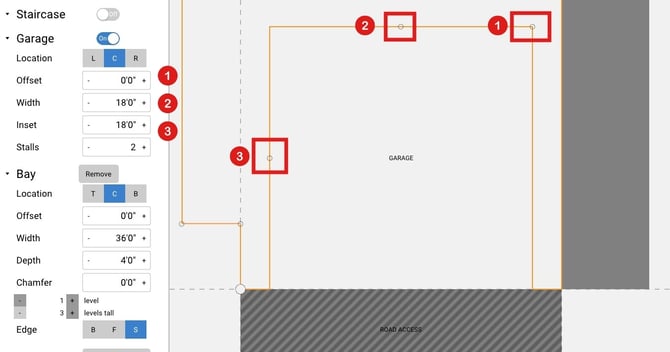

      Customizing the garage

      Easily control the location and size of garages; or disable them completely

      unit 1 garage

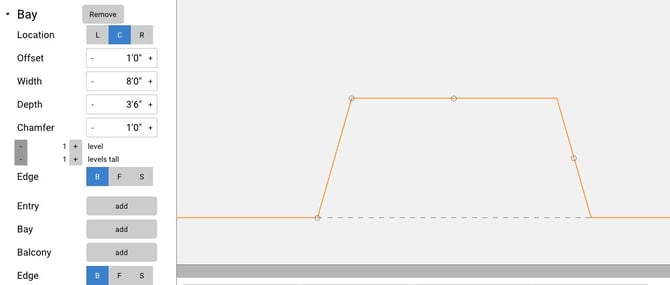

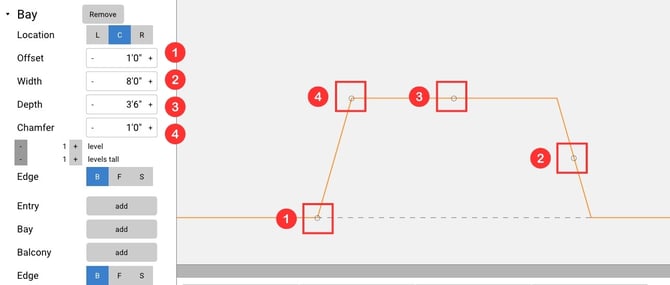

      Adding chamfered bays

      unit 2 bay chamfering

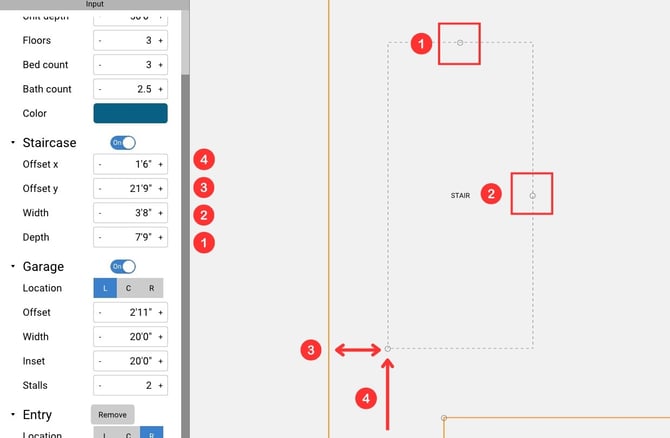

      Placing Stairs

      unit 3 staircases

      Inserting a background image

      You can also insert an underlay image to display and represent real floor plans.
