Manual Mode

Manual Mode is TestFit's core co-creation tool.

Definitions

Manual Mode - Converts generated TestFit geometry to an edit-able skeleton.



How to enter manual mode:

A building must have already been generated. Select the "M" button in the toolbar.

enter manual mode



How to remove generated building mass:

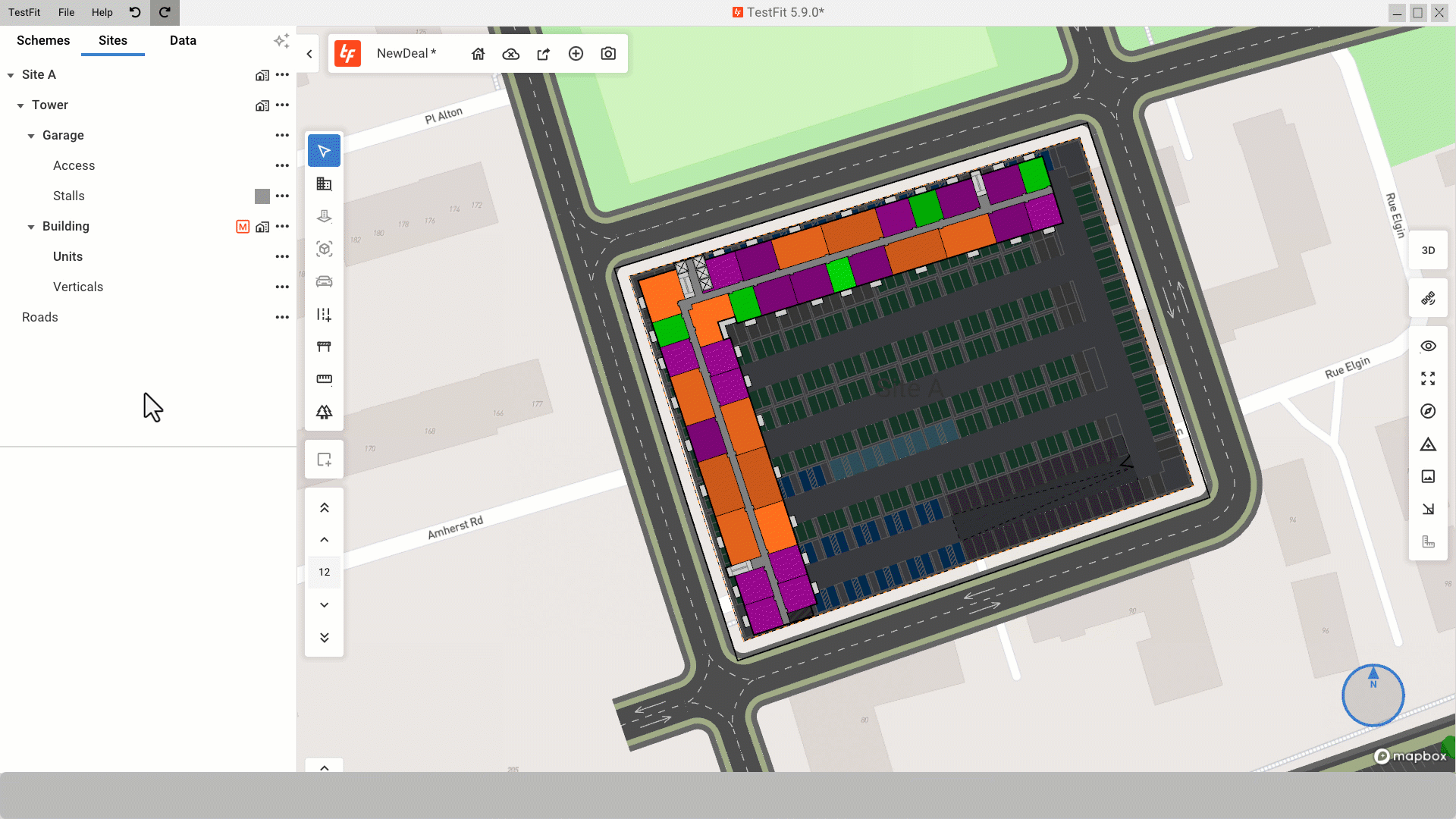

Once in manual mode, right click the mass and select "remove".

remove building mass



How to make building mass single-loaded:

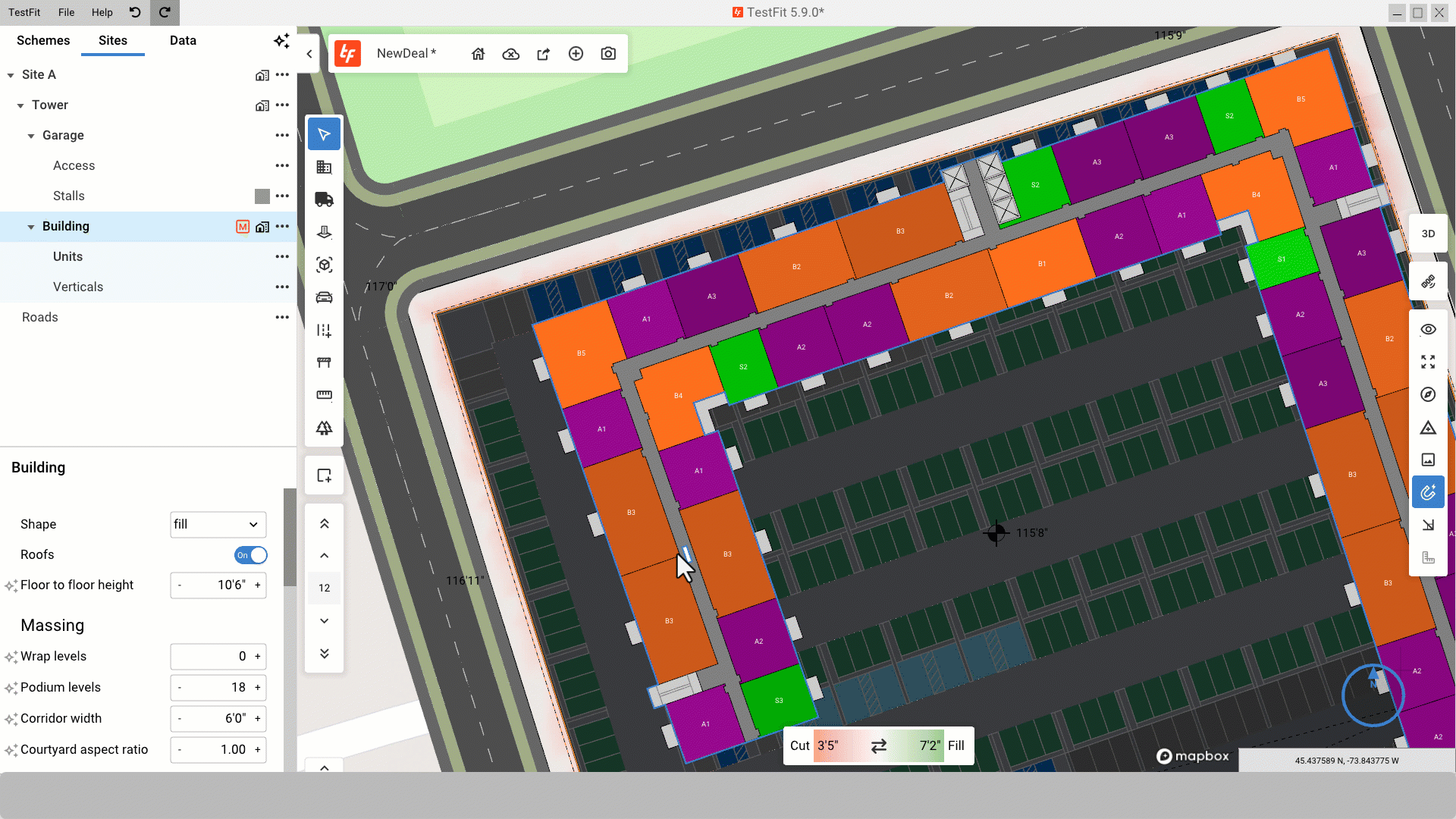

Once in manual mode, right click the side of the mass to remain, and select "single".

single load building mass



How to move building mass:

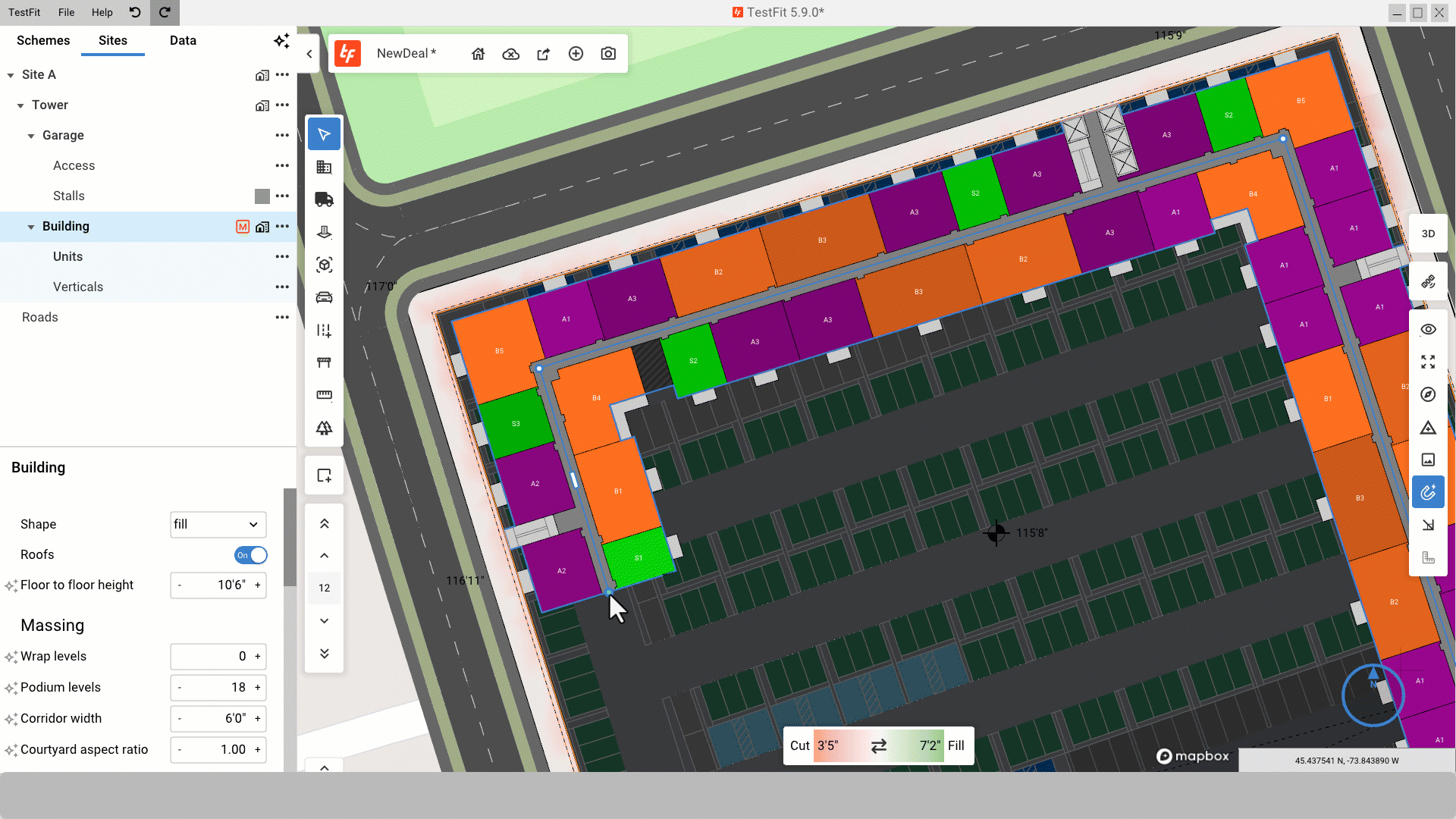

Once in manual mode, left click drag an orange node.

move building mass



How to remove a building node:

Right click the node, then select "remove". This will remove all attached building mass.

remove building node



How to attach building mass to a node:

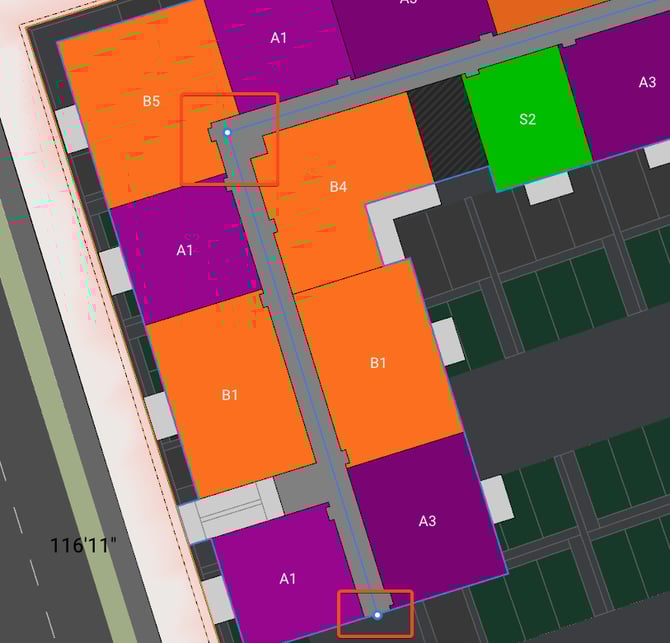

Left click drag from within the white circle, and without the orange circle in the direction of desired building location.

attach mass to building node



How to change the size of a Structured Rectangle Garage in Manual Mode:

Enter manual mode, and select the car icon. Then left click drag the garage edge to be edited.

edit structured rect garage



How to remove all manual changes:

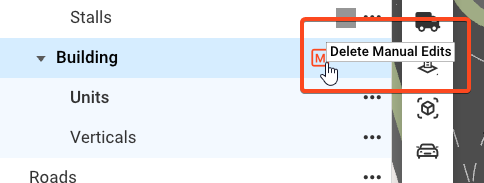

Enter manual mode, and then select the trash can icon. This will trash all manual changes.

trash manual changes



How to edit surface parking:

Enter manual mode, and then select the surface parking road icon. This will change the editing mode to roads. If the model does not have surface parking in it, it will not be select-able.

edit surface parking manual mode



How to create geometry without any context:

Left click drag on any open area, deselect to finish creating geometry.

draw with no context
