Compare multiple design solutions by using schemes

Comparing Schemes

There are a couple way s to compare schemes.

The Navigation Tree

2024-01-30_10-22-29 (1)

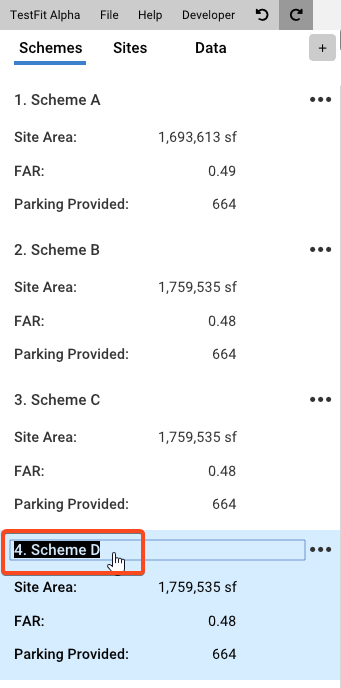

Next to Layers in the Navigation Tree, you'll see schemes where you can quickly compare the schemes in your project by FAR and Parking.

The Data Output Panel

schemes tab new UI

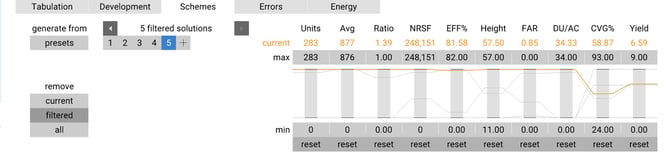

Under the canvas, you'll see the Schemes tab that compares your scheme across a number of different parameters.

Adding a Scheme

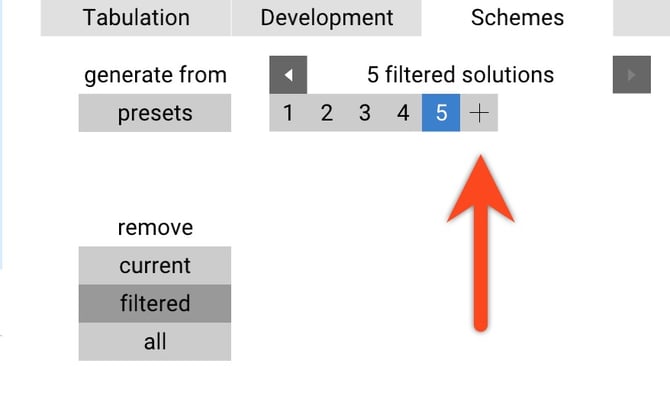

To add a scheme, go to the schemes tab on the Data Output Panel and hit the plus button.

add a scheme

Delete a Scheme

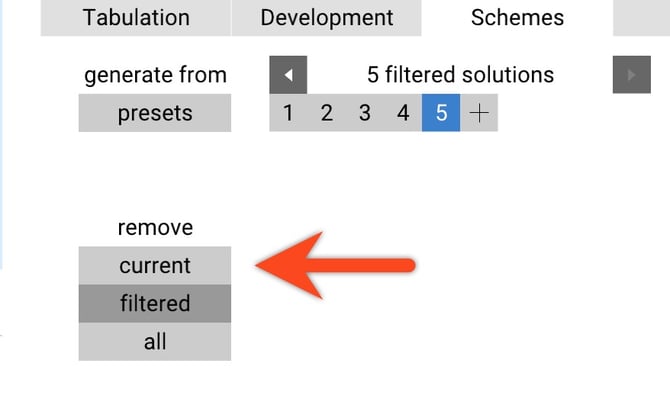

Select the scheme you want to delete, and click Current under the schemes tab. If you'd like to delete ALL schemes except for the one selected, click All.

delete a scheme
