Slice and merge sites for mixed-use deals

Manipulate and apply different configurators to sliced sites

Slicing Sites

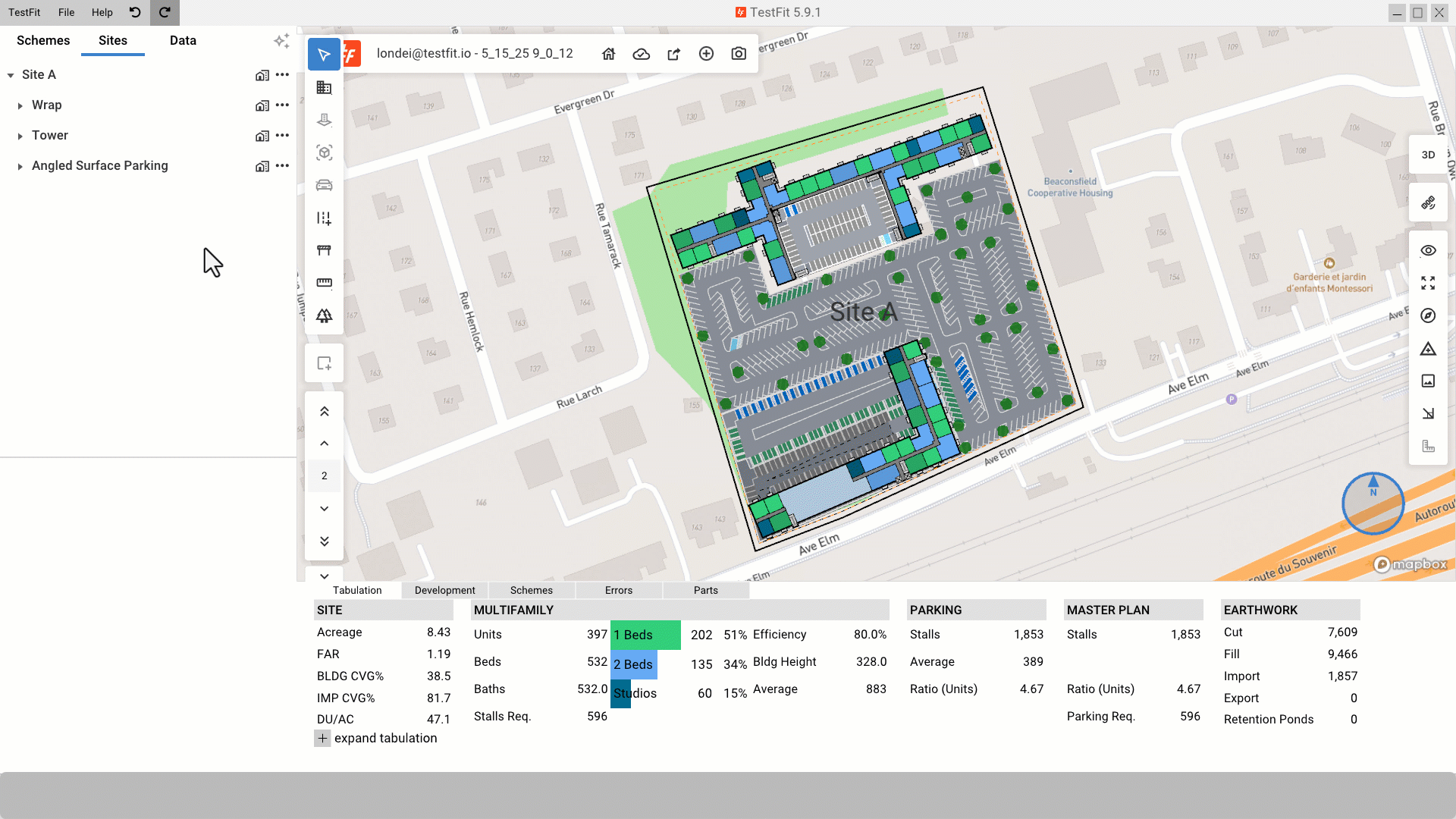

Slicing1

If a site needs to be split, to control varifying floor to floor heights, or to see individual site tabulations, follow these steps:

  1. Select the site you want to slice.

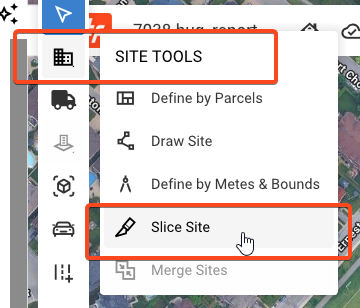

  2. from Site Tools , select Slice Site

  3.  Draw the division of the site and finish it by ending the line at the edge of the existing site boundary.
  4. The site will split into two sites. The site division line will be shown as a black line and the points along it can be moved in whatever way you deem necessary. These points can also be removed by right-clicking them and selecting remove.

Adjusting the Sliced Sites

When you slice a site it creates a copy of exactly what was in the site prior to slicing. So if you sliced a site that contained two regions, the new site will then contain the former regions in it as well. You will need to rename and remove the unneeded region.

In the example below ,we need to remove the Tower region from Site A and the Wrap region from Site B.

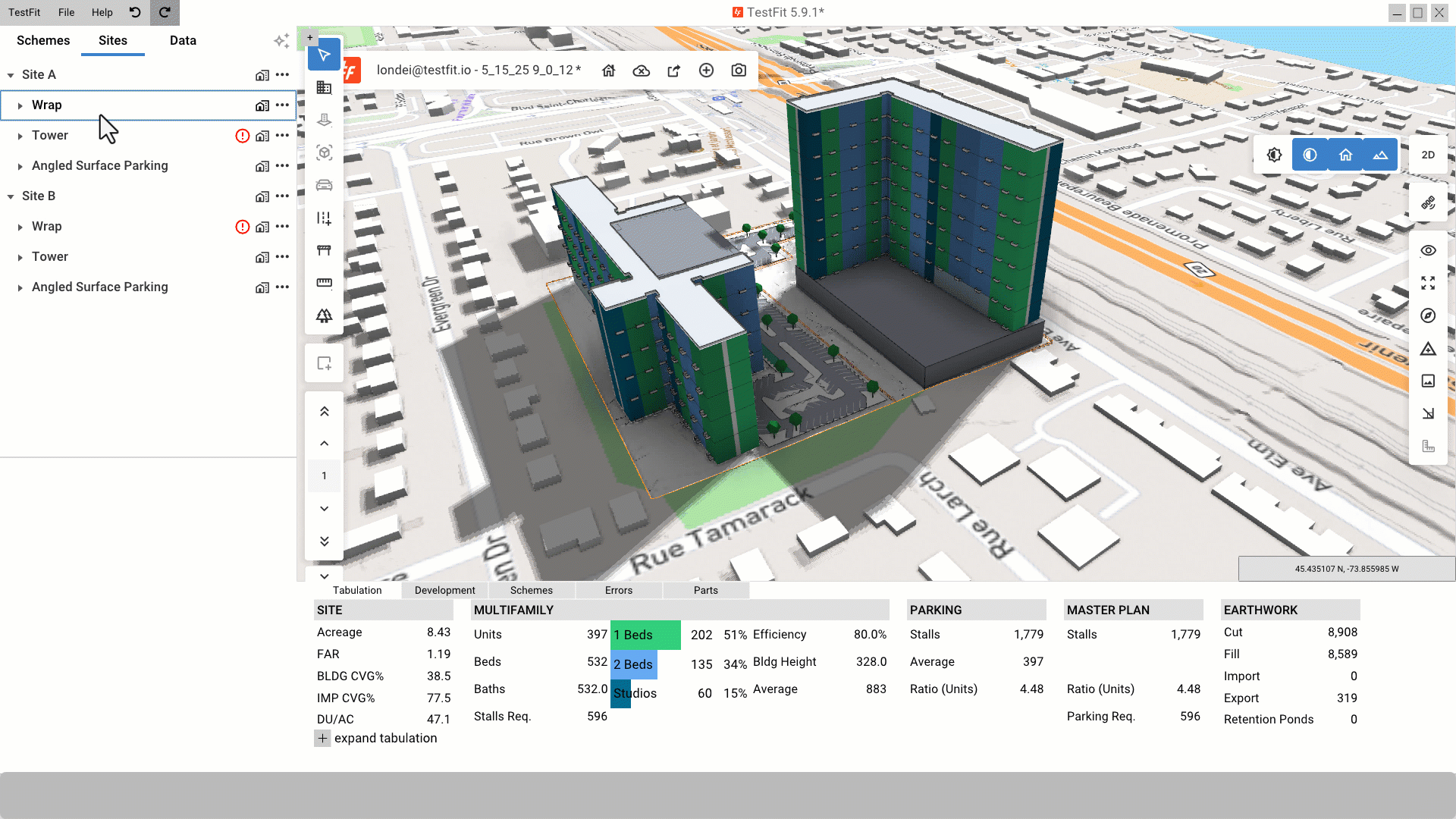

Slicing2


Merging sites

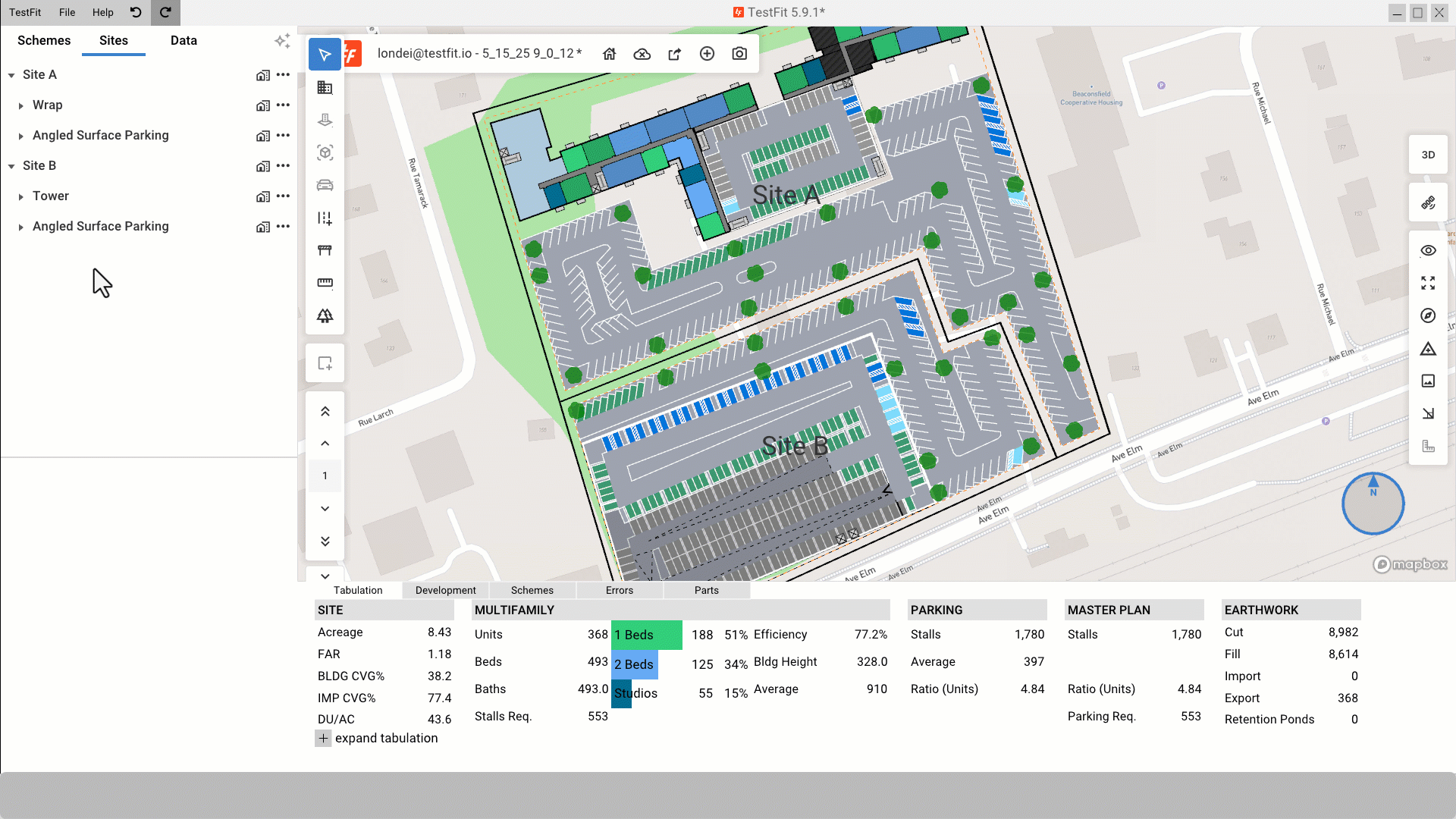

Slicing3

If you have divided sites and wish to merge them back together, start by selecting the site that you want to merge (the anchor site), from Site Tools select Merge sites, and then select site you want to merge into the anchor site. Only sites that have previously been sliced can be merged into a site.
