To access zoning data from Zoneomics directly within TestFit, you'll need a Site Solver subscription or the Site Intelligence add-on. For more information about upgrading your Parking Solver plan you can contact a sales representative.

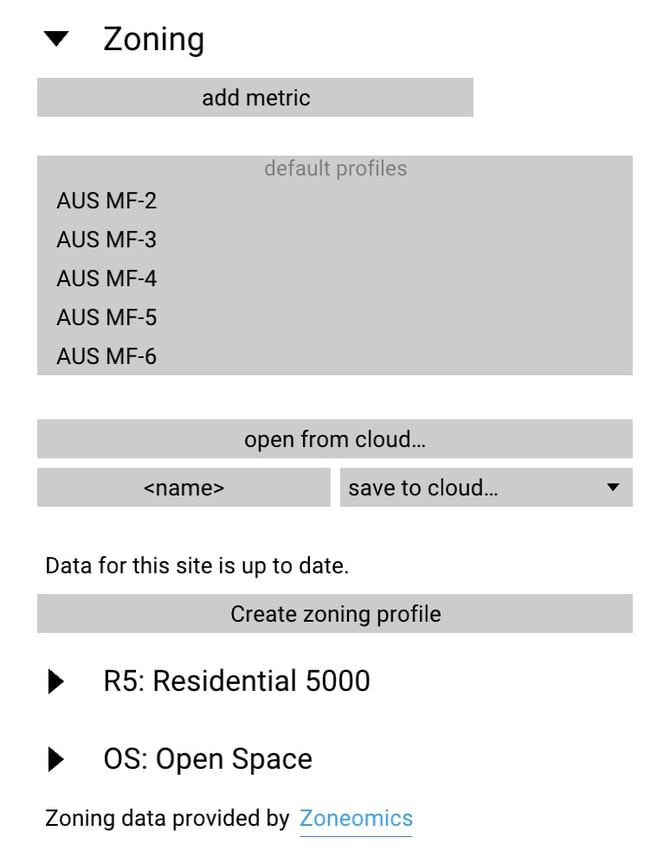

In the Properties Panel under Zoning when you select the site layer in the Navigation Tree.

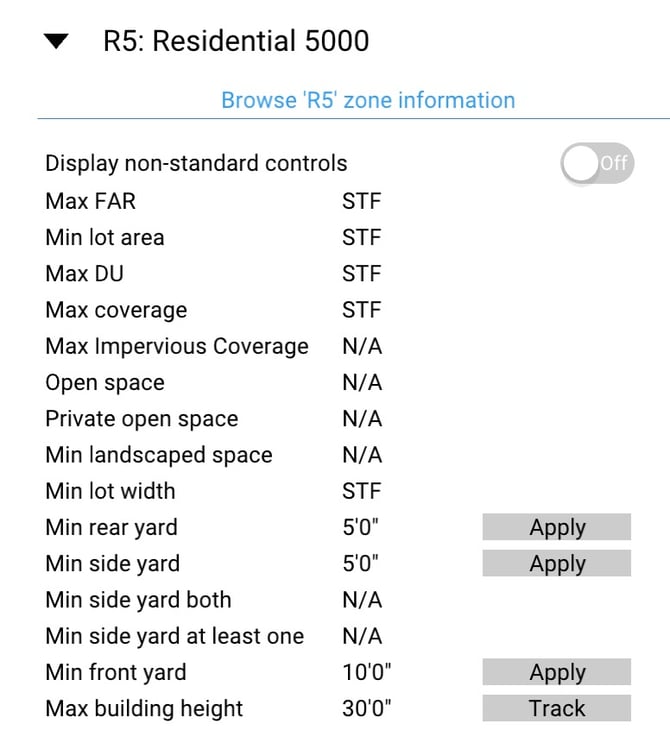

Here you will see what the parcel is zoned as, as well as the associated zoning parameters.

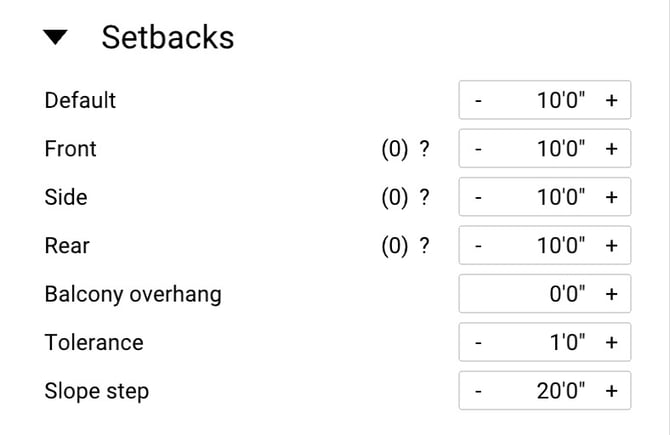

Defining setbacks
You can set the setbacks of your parcel to those defined by clicking "apply" next to the setback you want to use for the site.
Next to each setback, you'll see a symbol that lets you know where the setback data is coming from.
- * = setback set automatically
- ? = Zoning info isn't available
- ! = You've manually changed the front/side/rear setback from a different value than the pulled zoning data.
Tracking zoning metrics

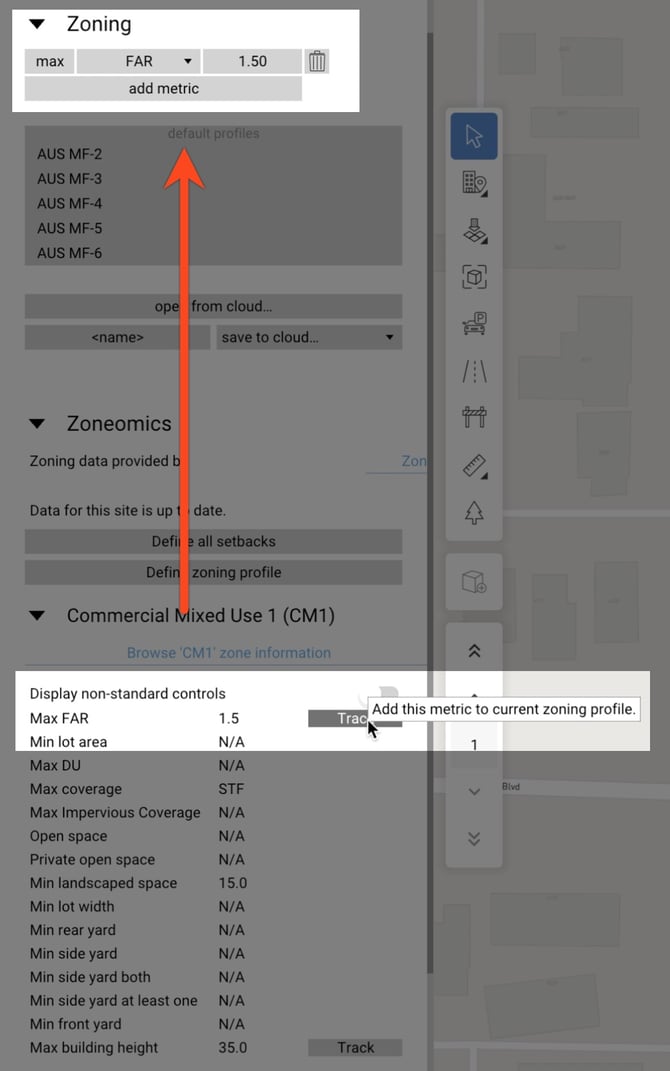

You can create a zoning profile to track your deal against particular zoning parameters by hit "Track" next to the available parameters.
Parking Details

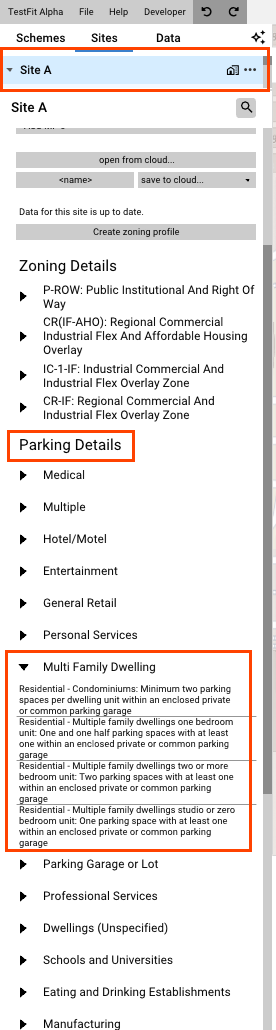

With the Site selected in the Nav Tree and expanding the Zoning dropdown menu in the Property Panel, you can access the Parking Details if available for a given location just under the Zoning Details.
Parking details are listed per use and are informative for their users to integrate into their Zoning Metrics, presets, and Generative Design constraints.

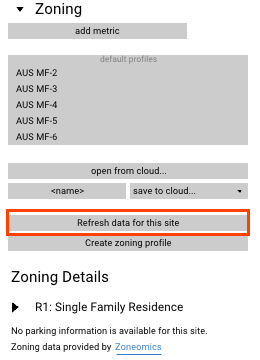

Note, if you do not see any parking data, you might need to refresh the data for the site.
If no parking information is still reflected in the Property Panel, it is possible that no parking data is available at this time.
