The circulation types were explained in the previous article (How can I adjust the Circulation type of a Garden Solve) so the remaining definitions/explanations can be found below:

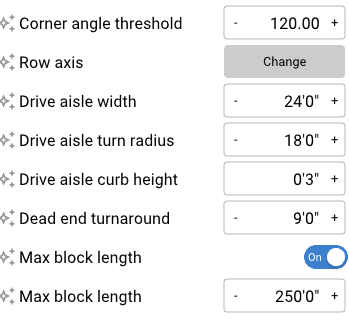

Corner angle threshold - Angle value that determines if a drive aisle is extended to a site extremity.
Row axis - Changes the solve orientation within the site. Provides different layouts
Drive aisle width - Controls the overall width of the drive aisle
Drive aisle turn radius - Controls the turn radius at corners/intersections of the drive aisles

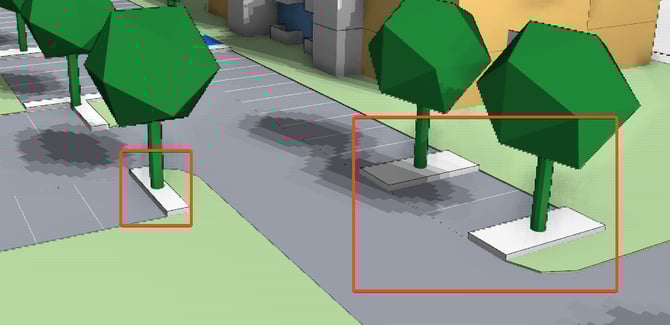

Drive aisle cub height - Controls the height of curbs in-between parking stalls and at the end of parking aisles (Only visible in 3D when Fill gaps with green space is disabled).

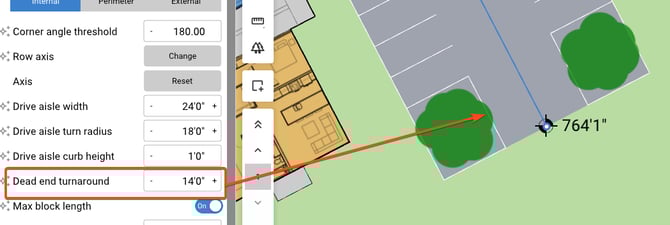

Dead end turnaround - Controls the distance at the end of a drive aisle where stalls can not be placed
Max block length toggle - When enabled, the max block length value appears. This allows definition of maximum allowable drive lengths before a new drive aisle is added
Max block length distance - Controls the distance of maximum allowable drive length

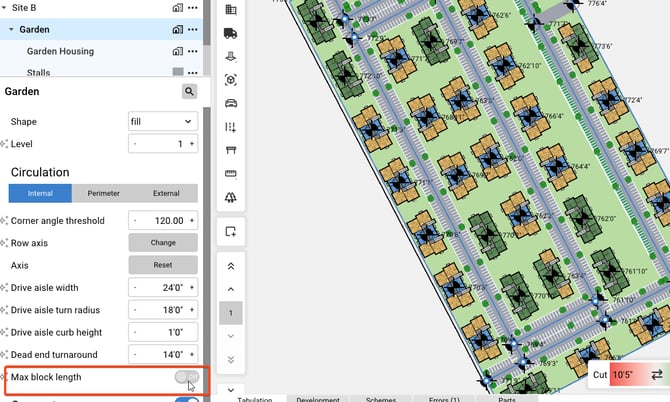

Max block length off

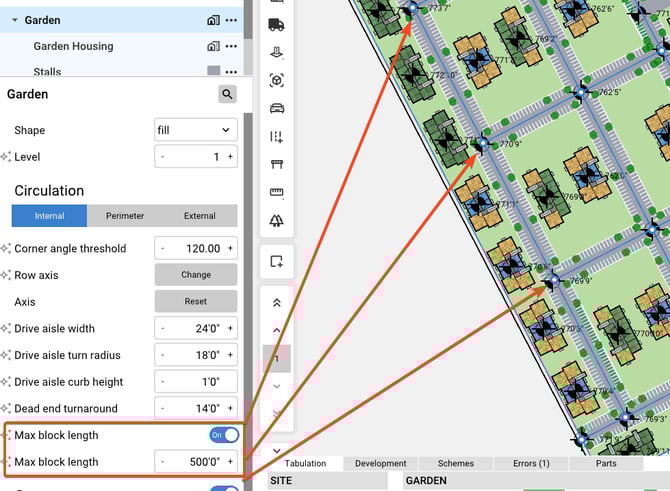

Max block length on with value at 500'
Connectors
Connectors toggle - When a Site has an irregular shape, the Connects toggle will determine if both areas are connected by drive aisles.

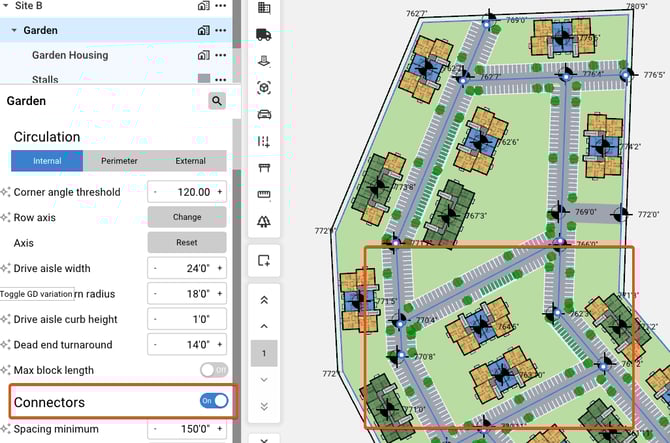

Connectors on

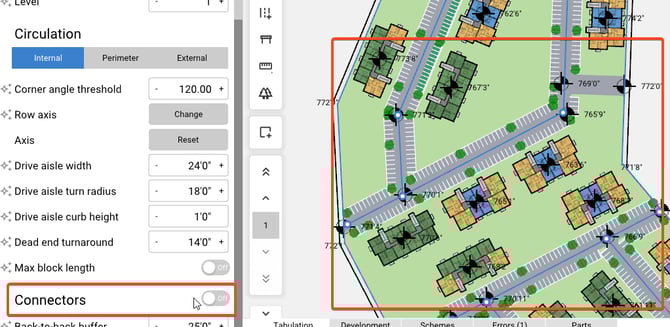

Connectors off

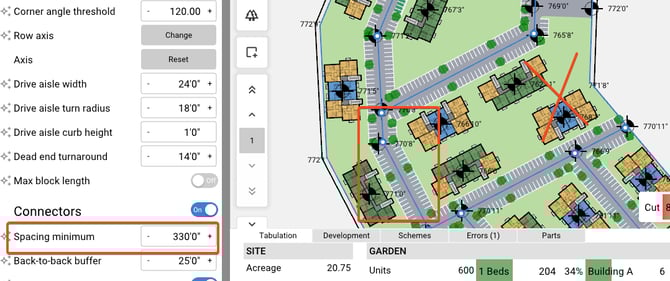

Spacing minimum - Determines the distance between connector roads.
Back-to-back buffer - Controls the distance between the backs of the garden buildings
Trees - Toggles trees on/off within the parking stall area

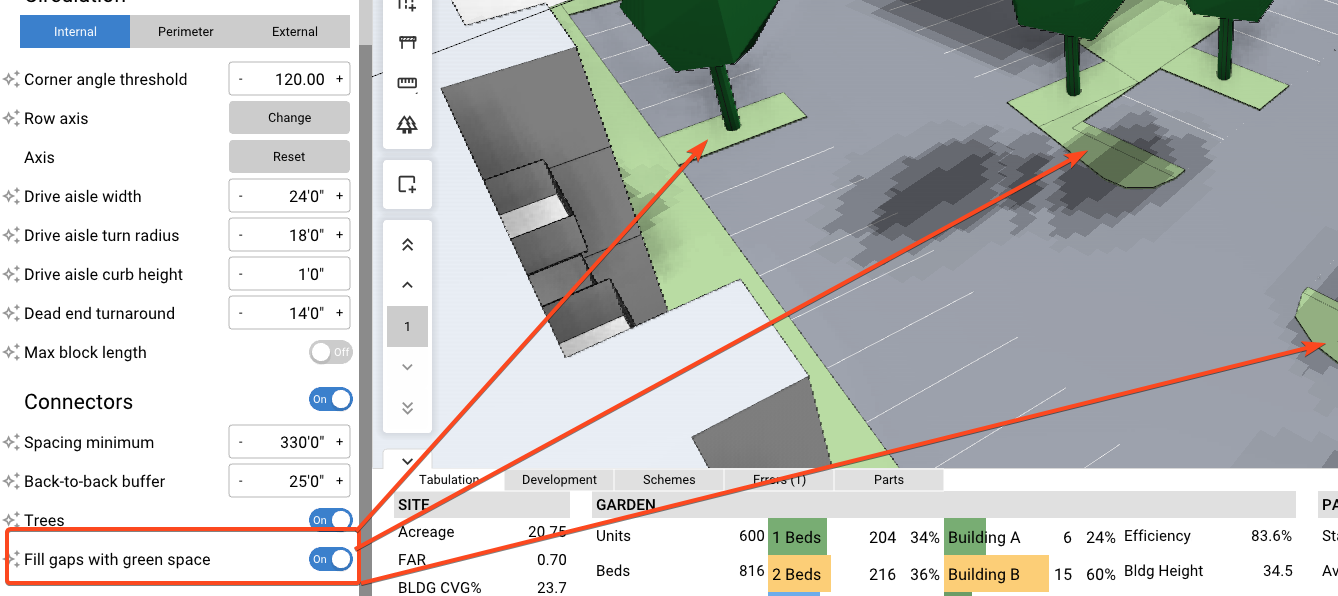

Fill gaps with green space - Toggles between concrete or green space areas around parking. Effects Impervious coverage percentage.
toggle on
toggle off
