How do I apply a Preset? Massing vs. Premium

Key Difference

  • Mass Based Presets: Unlimited use. You apply them to define basic building shapes/objects on a site.

  • Premium Presets: High-detail typologies. Each use consumes one credit.

Make sure you've read the article about creating a site.

Massing Presets

You can create an unlimited number of deals if only massing presets are used in your deal.

To apply a massing preset, follow these steps:

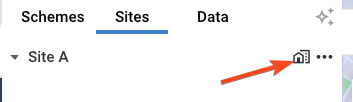

  1. Click the Preset Selector at the end of the Site layer.


  2. The Preset Panel will slide out of the right side of your screen.

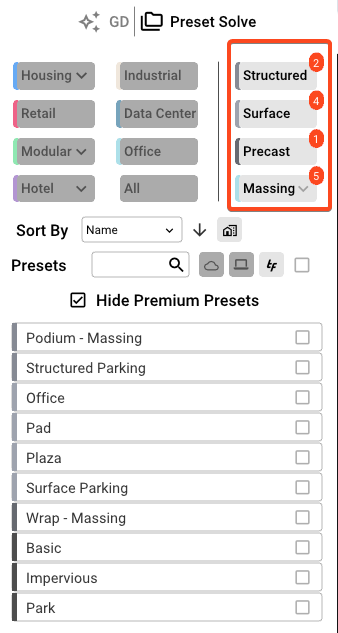

  3. Enable the Hide Premium Presets option.

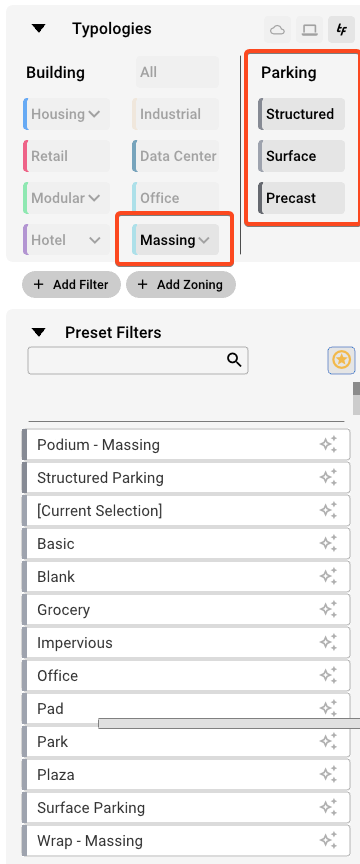

  4. Make sure the Massing option and Structure/Surface/Precast options are enabled to see the default presets (Office/Pad/Plaza/Podium - Massing/Structured Parking/Surface Parking/Wrap - Massing)




Premium Presets

To apply a Premium preset in your site, follow these steps:

  1. Click the Preset Selector at the end of the Site layer.
  2. The Preset Panel will slide out of the right side of your screen.

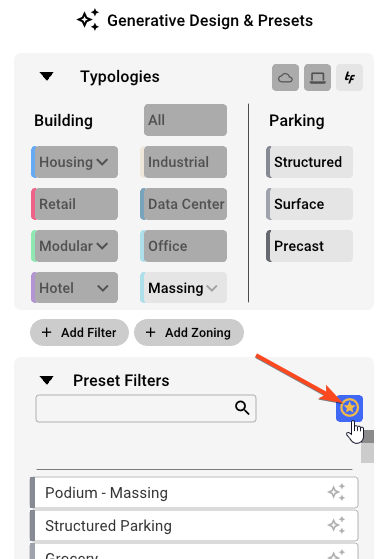

  3. Make sure the Hide Premium Presets option is not enabled.
  4. Select the building typology you want to be working with to limit the list of presets at your disposal (Housing is selected in the example below).

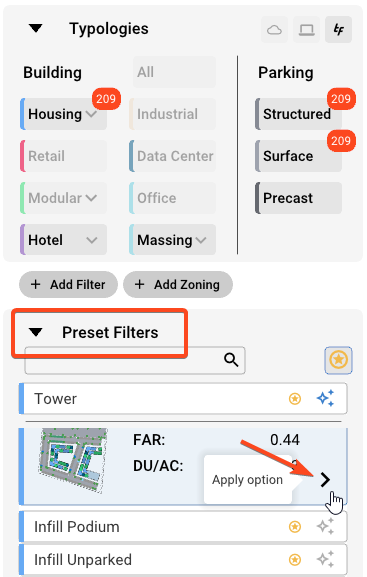

  5. Select the preset you want to apply to your site

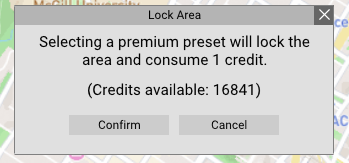

  6. You are now prompted to Lock Area and consume a credit. Click Confirm.

Take a look at this article to explore the Building Typologies.

You can now create addition sites within the locked area without consuming any additional credits
